Art. No.: MSTX2-2-12WEO19M
List number: 98240060

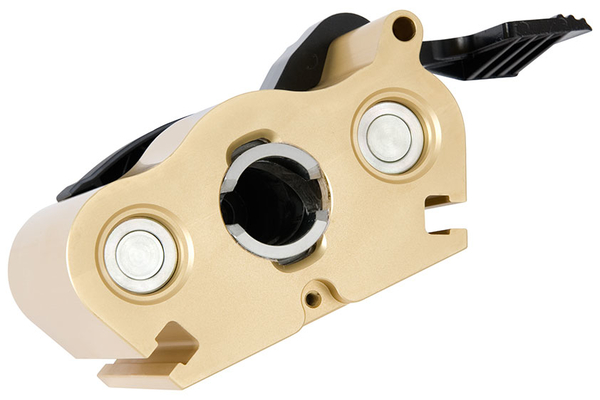

Multi coupling, Flat Face, few leakage oil, allows the connection of several hydraulic lines simultaneously. Can be coupled under residual pressure (up to 350 bar). Blocking on both sides, easy connecting and disconnecting via lever system
| DN: | 19 |
| Size: | 12 |
| working pressure [bar]: | 350 |
| thread + standard: | WEO 23mm |
| Thread [GA]: | WEO DN19 |
| Number of hydraulic inserts: | 2 |
| Series: | MST |
| max. number of electronic plugs: | 10 + grounding |
| max. number of hydraulic plugs: | 2 |
| l/min at ΔP=2 bar: | 60 l/min |
| Applications: | mobile hydraulic, industry |
| Designation: | female |
| Material sealing: | NBR |
| Product title long: | . |
| Temperature range [°C]: | -25°C to +100°C |
Reserve technical changes.
