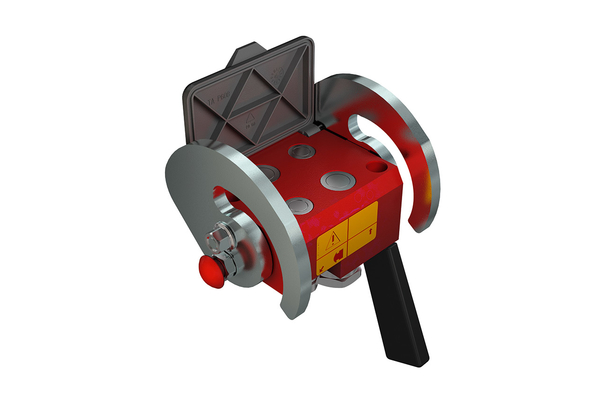

MSTPH5 (PH510G) female coupling DN12/19 - zinc-nickel

Detail

DN
12/19
12 / 19
Size
8/12
08 / 12
working pressure [bar]
460
460
Thread + standard
BSP female ISO 1179-1
BSPP 1/2" FEMALE - ISO 1179-1; BSPP 3/4" FEMALE - ISO 1179-1
Thread [GA]
G1/2"-14; G3/4"-14
G1/2"-14 ; G3/4"-14
Number of hydraulic inserts
4
4
Series
2P
Manufacturer ID number
PH510-4-A F C
PH510S-4-A F C
max. number of hydraulic plugs
4
4
l/min at ΔP=2 bar
DN 12: 60; DN19: 105
DN12: 60 l/min ; DN19: 105 l/min
Quantity


Product info

  • Technical data
    Applications: industry, agricultural technology , power units, construction machines
    Female or male coupling: sleeve
    Material: Aluminium & Steel
    Material sealing: NBR & PUR
    Surface: MATE 1000 (ZnNi) & Paint
    Temperature range [°C]: -25°C / +100°C

Benefit

Please refer to our wide spare part list to replace defect components.
