Product info
-
Specifications

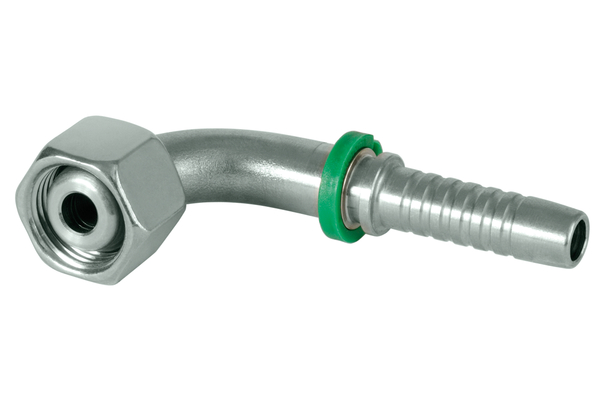

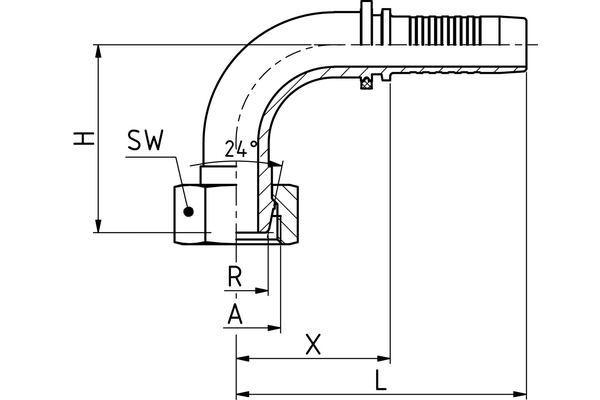

DN: 08 Size: 05 Inch: 5/16 Thread + standard: Sealing cone with union nut light series Connection thread A: M16x1,5 Pipe Ø R [mm]: 10 X [mm]: 31,0 L1 [mm]: 61,0 H [mm]: 31,5 SW1 [mm]: 19 Type of nut: - Connection name Indunorm: MSF 90° Connection type: DKL 90° Construction form: 90° Material: Free cutting steel Resistance against red rust [h]: 720 Resistance against white rust [h]: 120 Surface: Zinc-Nickel Type of fittings: Universal series XV
