Art. No.: HV12SFH6-135S12
List number: 04855690

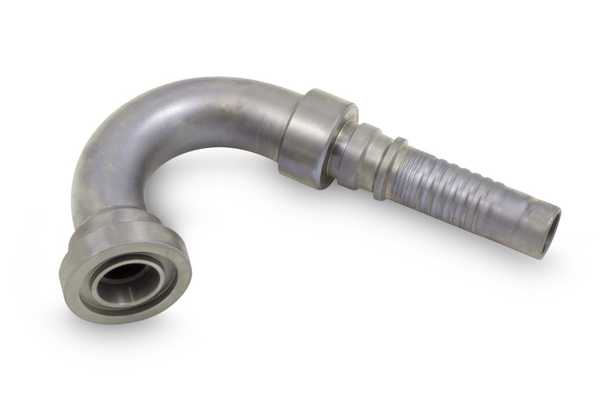

Flange head SAE J518 (ISO 6162) high pressure series 6.000 PSI
| DN: | 19 |
| Size: | 12 |
| Inch: | 3/4" |
| Thread + standard: | Flange head SAE J518 (ISO 6162) high pressure series 6000 PSI |
| Flange size D2: | 3/4" |

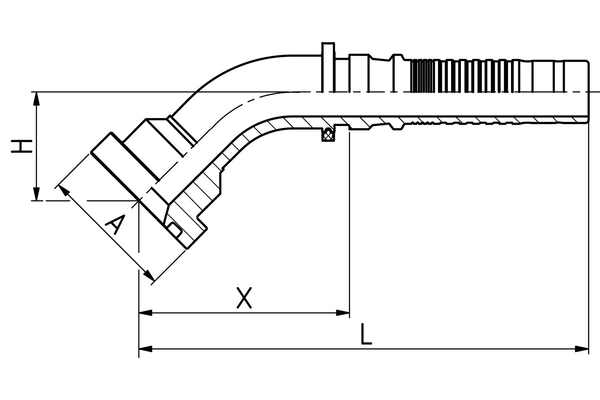

| X [mm]: | 34,8 |
| L1 [mm]: | 107,3 |
| H [mm]: | 85,3 |
| Connection name Indunorm: | SFS 6.000 PSI special elbows |
| Connection type: | SFS 6000 PSI |
| Material: | Free cutting steel |
| Type of fittings: | Multispiral series HV |
| degree: | 135 |
Reserve technical changes.
