Art. No.: HV16SFH6-30S12
List number: 04855610

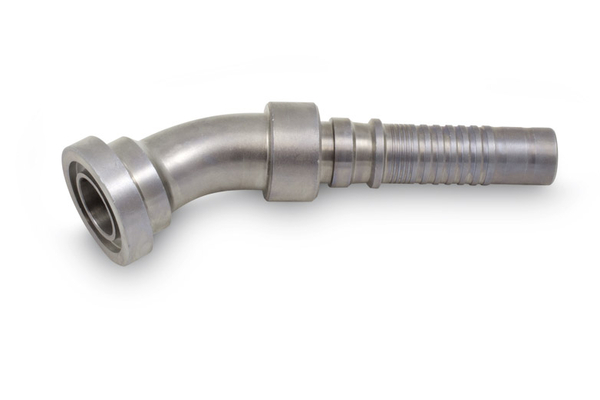

Flange head SAE J518 (ISO 6162) high pressure series 6.000 PSI
| DN: | 19 |
| Size: | 12 |
| Inch: | 3/4" |
| Thread + standard: | Flange head SAE J518 (ISO 6162) high pressure series 6000 PSI |
| Flange size D2: | 1" |
| X [mm]: | 75,1 |
| L1 [mm]: | 147,6 |
| H [mm]: | 19,5 |
| Connection name Indunorm: | SFS 6.000 PSI special elbows |
| Connection type: | SFS 6000 PSI |
| Material: | Free cutting steel |
| Type of fittings: | Multispiral series HV |
| degree: | 30 |
Reserve technical changes.
