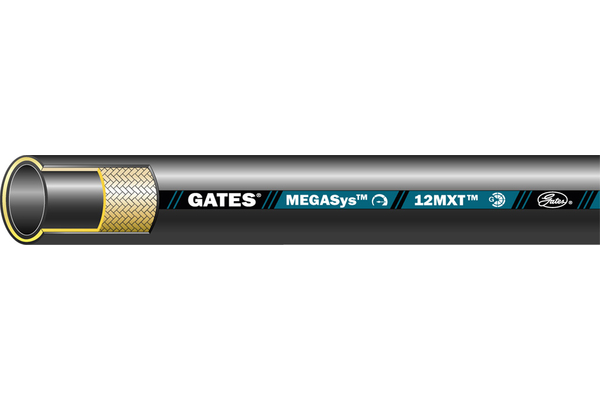

Gates MXT Braided Hose

Hydraulic hose for high pressure applications, meets the performance requirements of EN 853 2SN and EN 857 2SC.

Art. No.

MXT20

Size

Inch

3/4

Outer Ø [mm]

27,4

35,1

Inner Ø [mm]

bending radius [mm]

120

150

working pressure [bar]

215

165

burst pressure [bar]

860

660

Safety factor

4:1

Standard ferrule

XVN12

XVN16

Weight [kg]

0,70

1,00

Static test pressure [bar]

430

330

Quantity

Approvals:	MSHA approval
Color cover:	black
Color inner tube:	black
Cover:	Black, smooth, abrasion-resistant NBR/PVC-based synthetic rubber. Meets MSHA requirements for flame resistance.
Inner tube:	NBR (nitrile) based
MSHA-Approval:	yes
Media:	The MXT hose is suitable for biodegradable hydraulic fluids such as synthetic esters, polyglycols, vegetable oils and mineral oil-based fluids.
Norm/Standards:	Meets the performance requirements of EN 853 2SN and EN 857 2SC. Meets the dimensional requirements of ISO 11237 R16 and ISO 11237 R17 (-6 to -12). Meets the performance requirements of ISO 1436 R2 and ISO 11237 R19 (-6 and -8).
Reinforcement:	High tensile steel wire braid
Temperature range [°C]:	-40 ºC to +100 ºC.
application:	High-pressure hydraulic applications: easy routing and problem-free installation in compact hydraulic systems Cross-sector and multifunctional hydraulic solution.
max operating temperature [°C]:	100°C
number of layers:	DN6 and DN8 2 layer, DN10 to DN25 1 layer
