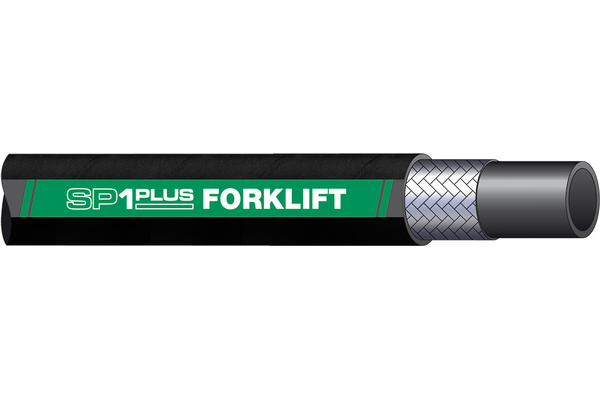

SP1PLUS-FL06S

Product info

• Technical data

  DN:	6
  Size:	04
  Inch:	1/4
  Inner Ø [mm]:	6,4
  bending radius [mm]:	50
  Working pressure [bar]:	250
  burst pressure [bar]:	1120
  Outer Ø max. [mm]:	12,3
  Color cover:	black
  Color inner tube:	black
  Cover:	Synthetic rubber, wear resistant
  Inner tube:	Synthetic rubber
  MSHA-Approval:	nein
  Media:	Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions
  Reinforcement:	1 layer of high tensile steel wire
  Temperature range [°C]:	- 40 ° C to + 100 ° C
