Product info
-
Technical data

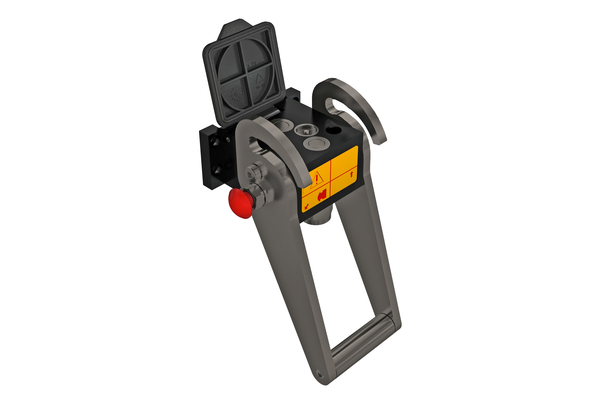

DN: 12 Size: 08 working pressure [bar]: 250 Thread + standard: BSP female DIN 3852 Thread [GA]: 1/2" BSP Innengewinde DIN 3852 Pipe Ø R [mm]: - Number of hydraulic inserts: 2 Series: 2P Manufacturer ID number: 2P208G-2-12G FC max. number of hydraulic plugs: 2 l/min at ΔP=2 bar: DN 12: 70 l/min Applications: industry, agricultural technology , power units, construction machines Female or male coupling: sleeve Material: Aluminium & Steel Material sealing: NBR & PUR Maximum assignment of the multi-coupling: 2 Note: Multi coupling, Flat Face, few leakage oil, allows the connection of several hydraulic lines simultaneously. Connection allowed up to 60bar residual pressure (2P) and full working pressure in the 3P version. Product title long: Series MSTN2. Product title short: female coupling Resistance against red rust [h]: 1000 Std. Surface: Zn-Ni Temperature range [°C]: -25°C / +100°C
