Product info
-
Specifications

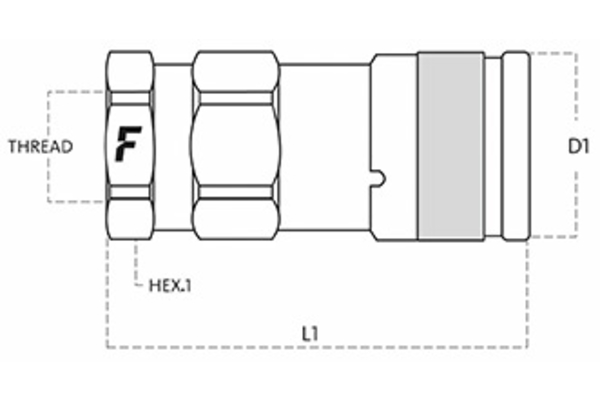

Size: 2 DN: 10 Size: 06 Inch: 3/8 working pressure [bar]: 250 Thread + standard: BSP internal thread ISO 1179-1 Thread [GA]: 1/2 Outer Ø sleeve [mm]: 30 Length sleeve [mm]: 74,9 SW2 [mm]: 27 l/min at ΔP=2 bar: 45 Applications: Industry, oil & gas applications Female or male coupling: Socket Material Casing: Stainless steel Material sealing: FKM Standard: ISO 16028 Temperature range [°C]: -20 °C to 200 °C wrong type: false
