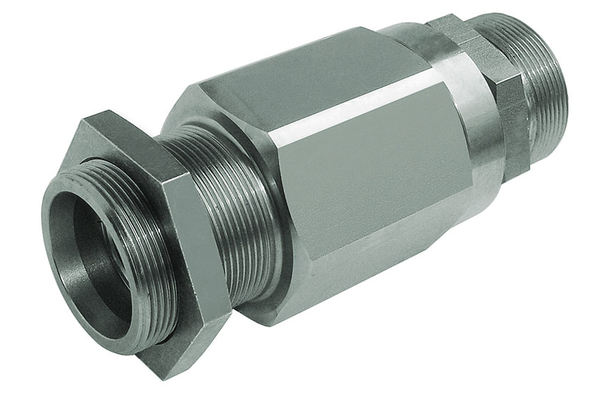

Rotating ball centered tube fitting D/SV

Similar image
Similar image

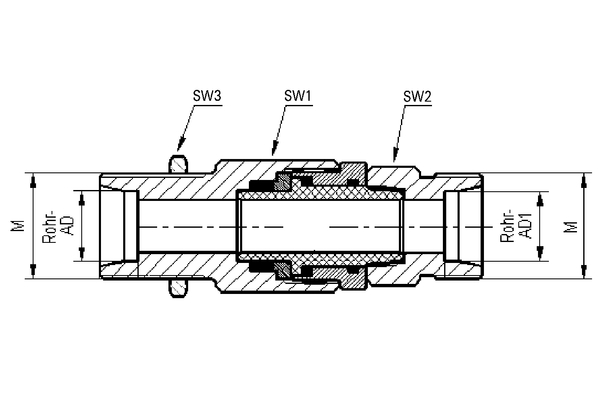

Straught bulkhead union, rotating, with counter nut, only body, metric

To accessories

Detail

Art. No.
RV08D/SV-L/KÖ
%
SALE
RV10D/SV-L/KÖ
%
SALE
RV12D/SV-L/KÖ
%
SALE
RV15D/SV-L/KÖ
%
SALE
RV06D/SV-L/KÖ
%
SALE
RV22D/SV-L/KÖ
%
SALE
RV06D/SV-S/KÖ
%
SALE
RV08D/SV-S/KÖ
%
SALE
RV12D/SV-S/KÖ
%
SALE
RV16D/SV-S/KÖ
%
SALE
RV20D/SV-S/KÖ
%
SALE
RV25D/SV-S/KÖ
%
SALE
RV30D/SV-S/KÖ
%
SALE
RV38D/SV-S/KÖ
%
SALE
working pressure [bar]
mind. 10 - max. 350
mind. 10 - max. 350
mind. 10 - max. 350
mind. 10 - max. 350
mind. 10 - max. 350
mind. 10 - max. 350
mind. 10 - max. 350
mind. 10 - max. 350
mind. 10 - max. 350
mind. 10 - max. 350
mind. 10 - max. 350
mind. 10 - max. 350
mind. 10 - max. 250
mind. 10 - max. 250
Pipe Ø R [mm]
8
10
12
15
6
22
6
8
12
16
20
25
30
38
Thread [G1]
M14x1,5
M16x1,5
M18x1,5
M22x1,5
M12x1,5
M30x2
M14x1,5
M16x1,5
M20x1,5
M24x1,5
M30x2
M36x2
M42x2
M52x2
Thread [G2]
M14x1,5
M16x1,5
M18x1,5
M22x1,5
M12x1,5
M30x2
M14x1,5
M16x1,5
M20x1,5
M24x1,5
M30x2
M36x2
M42x2
M52x2
Series
L
L
L
L
L
L
S
S
S
S
S
S
S
S
SW1 [mm]
22
30
30
32
22
41
22
22
30
30
41
41
60
60
SW2 [mm]
17
19
22
24
17
36
17
17
22
24
36
36
55
55
Thread [G]
M14x1,5
M16x1,5
M18x1,5
M22x1,5
M12x1,5
M30x2
M14x1,5
M16x1,5
M20x1,5
M24x1,5
M30x2
M36x2
M42x2
M52x2
Quantity


Product info

  • Specifications
    Connection type 1: Metric 24°
    Connection type 2: Metric 24°
    Construction form: Straight
    Description: Rotary ball-bearing bulkhead fitting
    Material: ST-l
    Surface: zinc plated, chrom 6-free
    Temperature range [°C]: -30°C - +95°C

Accessories

If you need a seperate bulkhead nut, you will find it in section accessories
