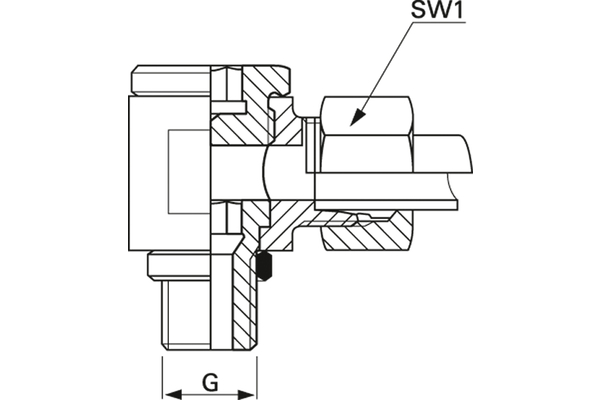

Banjo angle union DSVW (inch)

Similar image
Similar image

Throttle-free swivel screw-fitting, inch

To accessories

Detail

Art. No.
RV06DSVW-LR
%
SALE
RV08DSVW-LR
%
SALE
RV10DSVW-LR
%
SALE
RV12DSVW-LR
%
SALE
RV15DSVW-LR
%
SALE
RV18DSVW-LR
%
SALE
RV22DSVW-LR
%
SALE
RV28DSVW-LR
%
SALE
RV35DSVW-LR
%
SALE
RV06DSVW-SR
%
SALE
RV08DSVW-SR
%
SALE
RV10DSVW-SR
%
SALE
RV12DSVW-SR
%
SALE
RV16DSVW-SR
%
SALE
RV20DSVW-SR
%
SALE
RV25DSVW-SR
%
SALE
working pressure [bar]
250
250
250
250
250
100
100
100
100
400
400
400
400
400
400
250
burst pressure [bar]
1000
1000
1000
1000
1000
400
400
400
400
1600
1600
1600
1600
1600
1600
1000
Pipe Ø R [mm]
6
8
10
12
15
18
22
28
35
6
8
10
12
16
20
25
Thread [G1]
M12x1,5
M14x1,5
M16x15
M18x1,5
M22x1,5
M26x1,5
M30x2
M36x2
M45x2
M14x1,5
M16x1,5
M18x1,5
M20x1,5
M24x1,5
M30x2
M36x2
Thread [G2]
G 1/8"
G 1/4"
G 1/4"
G 3/8"
G 1/2"
G 1/2"
G 3/4"
G 1"
G 1.1/4"
G 1/4"
G 1/4"
G 3/8"
G 3/8"
G 1/2"
G 3/4"
G 1"
Series
L
L
L
L
L
L
L
L
L
S
S
S
S
S
S
S
SW1 [mm]
19
22
22
27
32
36
46
50
60
22
22
27
27
36
46
50
SW2 [mm]
6
6
8
10
12
14
17
22
27
6
8
10
12
14
17
22
SW3 [mm]
14
17
19
22
27
32
36
41
50
17
19
22
24
30
36
46
Quantity


Product info

  • Specifications
    Connection type 1: Metric 24°
    Connection type 2: Imperial
    Construction form: Angle 90°
    Description: Thrustless angular swivel screw connection
    Material: ST-l
    Resistance against red rust [h]: 1000
    Resistance against white rust [h]: 500
    Surface: zinc plated, chrom 6-free
