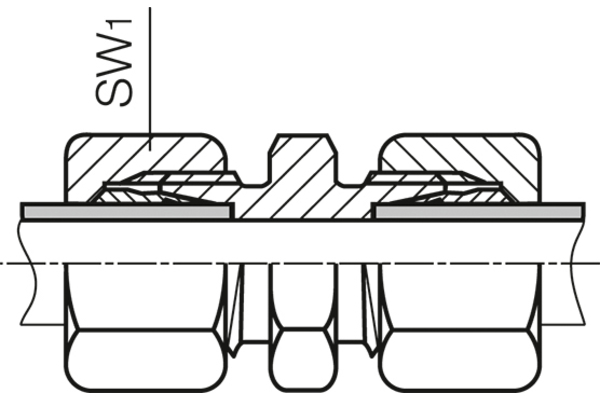

Straight union G

Similar image
Similar image

Straight screw connection

To accessories

Detail

Art. No.
RV06G-L
%
SALE
RV08G-L
%
SALE
RV10G-L
%
SALE
RV12G-L
%
SALE
RV15G-L
%
SALE
RV18G-L
%
SALE
RV22G-L
%
SALE
RV28G-L
%
SALE
RV35G-L
%
SALE
RV42G-L
%
SALE
RV06G-S
%
SALE
RV08G-S
%
SALE
RV10G-S
%
SALE
RV12G-S
%
SALE
RV14G-S
%
SALE
RV16G-S
%
SALE
RV20G-S
%
SALE
RV25G-S
%
SALE
RV30G-S
%
SALE
RV38G-S
%
SALE
working pressure [bar]
315
315
315
315
315
315
160
160
160
160
630
630
630
630
630
400
400
400
400
315
burst pressure [bar]
1260
1260
1260
1260
1260
1260
640
640
640
640
2520
2520
2520
2520
2520
1600
1600
1600
1600
1260
Pipe Ø R [mm]
6
8
10
12
15
18
22
28
35
42
6
8
10
12
14
16
20
25
30
38
Thread [G1]
M12x1,5
M14x1,5
M16x1,5
M18x1,5
M22x1,5
M26x1,5
M30x2
M36x2
M45x2
M52x2
M14x1,5
M16x1,5
M18x1,5
M20x1,5
M22x1,5
M24x1,5
M30x2
M36x2
M42x2
M52x2
Thread [G2]
M12x1,5
M14x1,5
M16x1,5
M18x1,5
M22x1,5
M26x1,5
M30x2
M36x2
M45x2
M52x2
M14x1,5
M16x1,5
M18x1,5
M20x1,5
M22x1,5
M24x1,5
M30x2
M36x2
M42x2
M52x2
Series
L
L
L
L
L
L
L
L
L
L
S
S
S
S
S
S
S
S
S
S
SW1 [mm]
12
14
17
19
24
27
32
41
46
55
14
17
19
22
24
27
32
41
46
55
SW2 [mm]
14
17
19
22
27
32
36
41
50
60
17
19
22
24
27
30
36
46
50
60
Quantity


Product info

  • Specifications
    Connection type 1: Metric 24°
    Connection type 2: Metric 24°
    Construction form: Straight
    Description: Straight screw connections
    Material: Steel
    Resistance against red rust [h]: 1000
    Resistance against white rust [h]: 500
    Surface: zinc plated, chrom 6-free

Accessories

Union nuts and cutting rings can be found in  section accessories.

Practical tip

For correct mounting of cutting rings, please see our installation instructions.
