Product info
-
Technical data

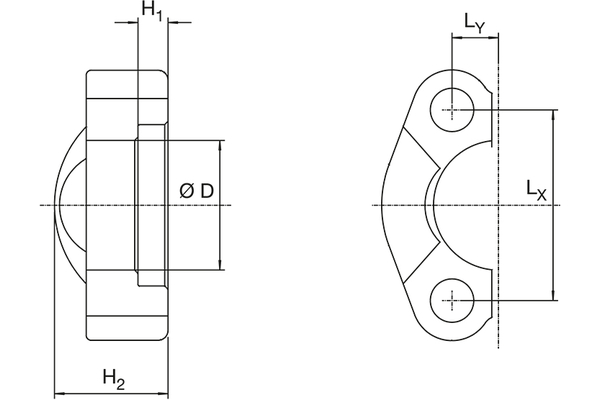

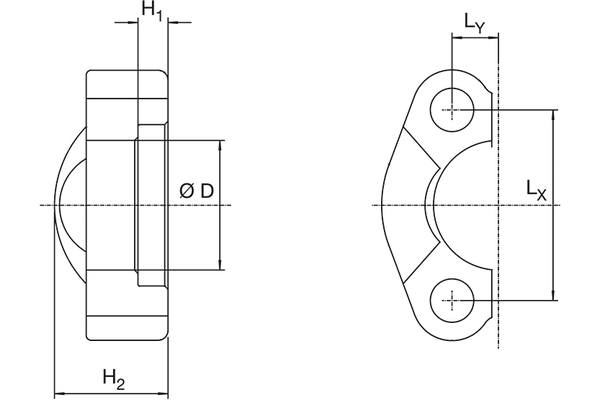

DN: 38 Size: 24 Inch: 1.1/2 Working pressure [bar]: 200 H1 [mm]: 7,5 H2 [mm]: 24 G: M12x35 E [mm]: 25,0 Lx [mm]: 69,90 Ly [mm]: 17,90 Ø D1 [mm]: 50,80
RX24SFC3
Half flange, normal design 3,000 psi
Art. No.: RX24SFC3
List number: 15800500
Reserve technical changes.
