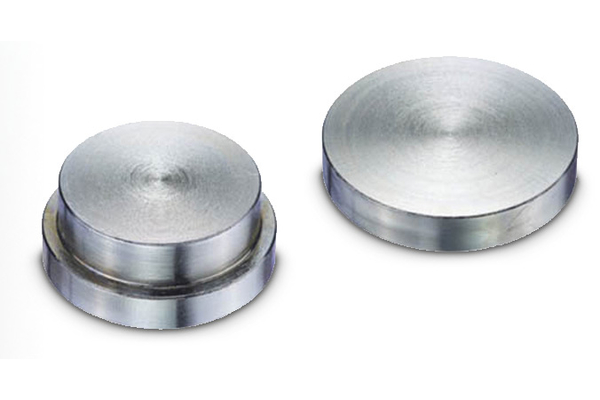

SAE blind plate / SAE blind plug / SAE blind flange

SAE blind plate / SAE blind plug
Standard / high for 3000 / 6000 PSI

To accessories

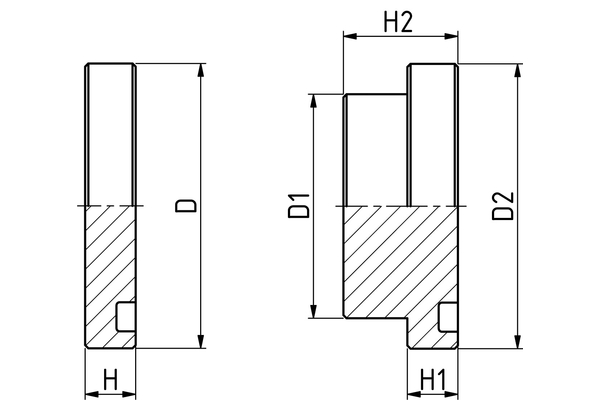

Detail

Art. No.

RX-BT08-3

RX-BT12-3

RX-BT16-3

RX-BT20-3

RX-BT24-3

RX-BT32-3

RX-BTH08-3

RX-BTH12-3

RX-BTH16-3

RX-BTH20-3

RX-BTH24-3

RX-BTH32-3

RX-BT08-6

RX-BT12-6

RX-BT16-6

RX-BT20-6

RX-BT24-6

RX-BT32-6

RX-BTH08-6

RX-BTH12-6

RX-BTH16-6

RX-BTH20-6

RX-BTH24-6

RX-BTH32-6

Size

Inch

1/2

3/4

1.1/4

1.1/2

1/2

3/4

1.1/4

1.1/2

1/2

3/4

1.1/4

1.1/2

1/2

3/4

1.1/4

1.1/2

Flange size D2

3.000 psi

6.000 psi

D [mm]

30,2

38,1

44,45

50,8

60,35

71,4

30,2

38,1

44,45

50,8

60,35

71,4

31,8

41,3

47,6

54,0

63,5

79,4

31,8

41,3

47,6

54,0

63,5

79,4

L1 [mm]

15,0

16,0

18,0

21,0

18,0

21,0

26,0

31,0

34,0

42,0

L [mm]

6,8

8,0

9,6

6,8

8,0

9,6

7,8

8,8

9,5

10,3

12,6

7,8

8,8

9,5

10,3

12,6

Quantity

Product info

Specifications

Material:	Free cutting steel
Surface:	CrIII
Type of fittings:	XV, HV, HI, HAN, VC

Practical tip

The high version uses half flanges, the low version uses full flanges.
Due to the pitch, on the higher version the centring of the half flanges is carried out using the turned diameter, whereas with the full flanges it is carried out using the flange plate diameter.
