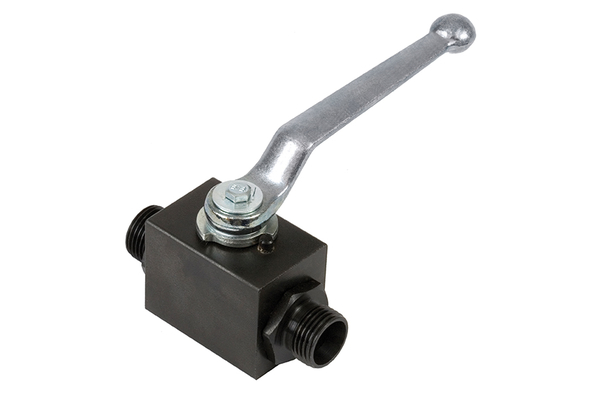

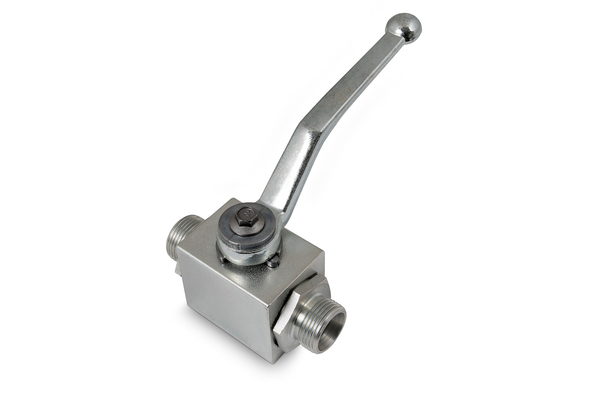

KHB-6L-4
Ball valve, block design

Product info

• Technical data

  DN:	4
  Working pressure [bar]:	500
  Thread + standard:	solderless fittings, DIN 2353, light series, ISO 8434-1
  Thread [GA]:	M12x1.5
  Pipe Ø R [mm]:	6
  L [mm]:	67
  Lever length [R] [mm]:	115
  B [mm]:	26
  H1 [mm]:	13,5
  H [mm]:	33
  GL [mm]:	11
  Material Casing:	steel
  Material switching ball:	steel, hard chrome plated
  Material switching ball sealing:	POM
  Material switching shaft:	steel
  Material switching shaft sealing:	NBR
  Surface:	burnished
