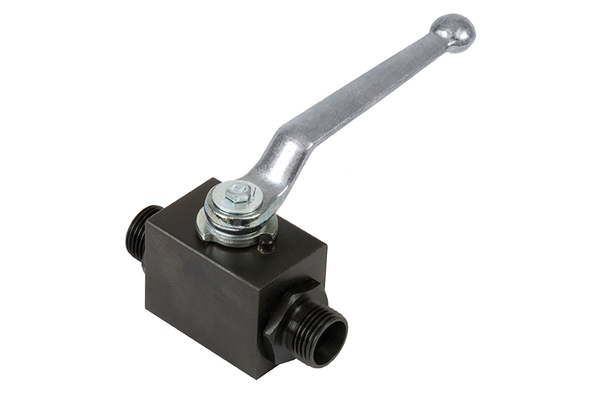

KHB-14S-10
Ball valve, block design

Product info

• Technical data

  DN:	10
  Working pressure [bar]:	500
  Thread + standard:	solderless fittings, DIN 2353, heavy series, ISO 8434-1
  Thread [GA]:	M22x1.5
  Pipe Ø R [mm]:	14
  L [mm]:	80
  Lever length [R] [mm]:	115
  B [mm]:	32
  H1 [mm]:	17,5
  H [mm]:	38
  GL [mm]:	11
  Material Casing:	steel
  Material switching ball:	Stahl, hartverchromt
  Material switching ball sealing:	POM
  Material switching shaft:	steel
  Material switching shaft sealing:	NBR
  Product title short:	2-way ball valves
