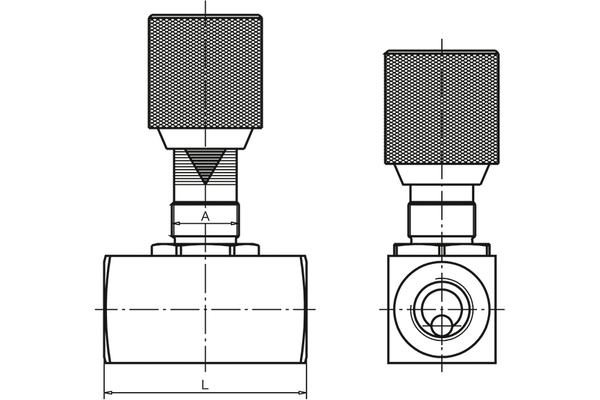

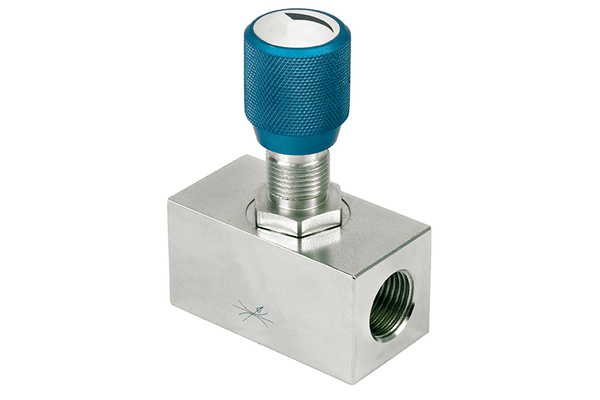

Throttle valve NDV (BSP)

Detail

DN
4
6
10
12
20
25
working pressure [bar]
350
350
350
350
350
350
Thread + standard
Whitworth-Pipe thread (BSP), DIN EN ISO 228-1
Whitworth-Pipe thread (BSP), DIN EN ISO 228-1
Whitworth-Pipe thread (BSP), DIN EN ISO 228-1
Whitworth-Pipe thread (BSP), DIN EN ISO 228-1
Whitworth-Pipe thread (BSP), DIN EN ISO 228-1
Whitworth-Pipe thread (BSP), DIN EN ISO 228-1
L1 [mm]
10,0
12,0
14,0
15,0
16,0
20,0
Thread [G1]
G 1/8
G 1/4
G 3/8
G 1/2
G 3/4
G 1
Thread [G2]
G 1/8
G 1/4
G 3/8
G 1/2
G 3/4
G 1
Fastening thread
M18x1,5
M18x1,5
M18x1,5
M18x1,5
M22x1,5
M36x1,5
Thread [G]
G 1/8
G 1/4
G 3/8
G 1/2
G 3/4
G 1
H1 [mm]
10,0
12,5
15,0
17,5
22,5
25,0
H2 [mm]
23
28
35
40
52
60
B [mm]
20
25
30
35
45
50
Quantity
