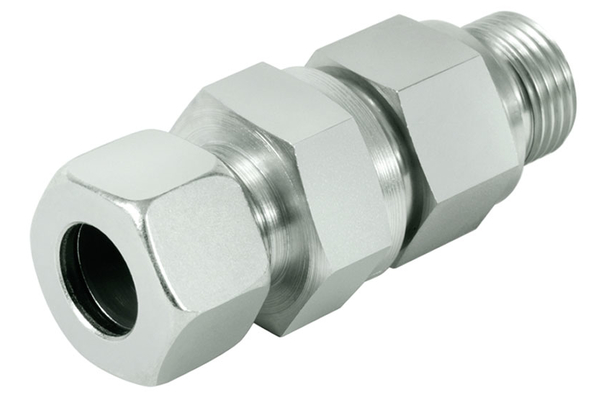

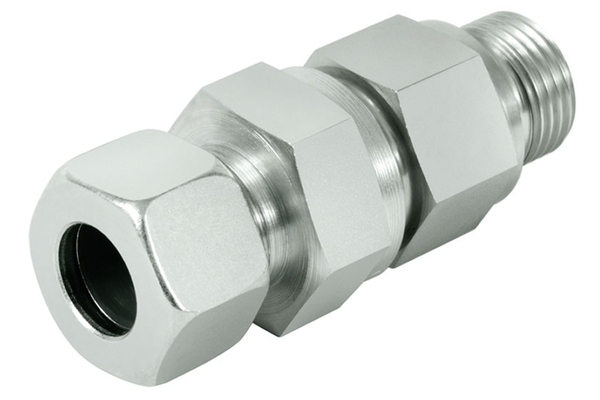

BSP-screw-in RHV/ED (metric, light series)

Similar image

With cutting ring/BSP connection, flow towards the cutting ring connection

To accessories

Detail

Art. No.
RV08RHV-LR/ED
%
SALE
RV10RHV-LR/ED
%
SALE
RV12RHV-LR/ED
%
SALE
RV15RHV-LR/ED
%
SALE
RV18RHV-LR/ED
%
SALE
RV22RHV-LR/ED
%
SALE
RV28RHV-LR/ED
%
SALE
RV35RHV-LR/ED
%
SALE
working pressure [bar]
250
250
250
250
160
160
100
100
Thread + standard
solderless fittings, DIN 2353, light und heavy series, ISO 8434-1
solderless fittings, DIN 2353, light series, ISO 8434-1
solderless fittings, DIN 2353, light series, ISO 8434-1
solderless fittings, DIN 2353, light series, ISO 8434-1
solderless fittings, DIN 2353, light series, ISO 8434-1
solderless fittings, DIN 2353, light series, ISO 8434-1
solderless fittings, DIN 2353, light series, ISO 8434-1
solderless fittings, DIN 2353, light series, ISO 8434-1
Pipe Ø R [mm]
8
10
12
15
18
22
28
35
Thread [G1]
M 14x1,5
M 16x1,5
M 18x1,5
M 22x1,5
M 26x1,5
M 30x2
M 36x2
M 45x2
Thread [G2]
G 1/4"
G 1/4"
G 3/8"
G 1/2"
G 1/2"
G 3/4"
G 1"
G 1.1/4"
Series
L
L
L
L
L
L
L
L
Quantity


Product info

  • Specifications
    Connection type 1: metric 24°
    Connection type 2: imperial
    Construction form: check valves
    Material: ST-l
    Surface: zinc plated, chrom 6-free

Benefit

You can find the right flow direction engraved on the check valve.

Practical tip

You can find the right flow direction engraved on the check valve.
