KHU3-12L-10-T
Directional ball valve

Product info

• Technical data

  DN:	10
  Working pressure [bar]:	500
  Thread + standard:	solderless fittings, DIN 2353, light series, ISO 8434-1
  Thread [GA]:	M18x1,5

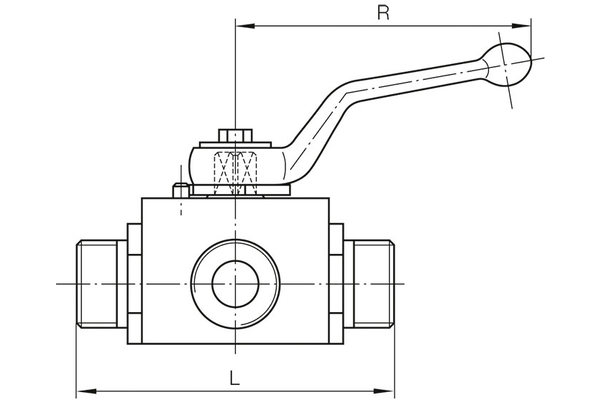

  L [mm]:	74
  Lever length [R] [mm]:	115
  B [mm]:	35
  H1 [mm]:	17,5
  H [mm]:	38

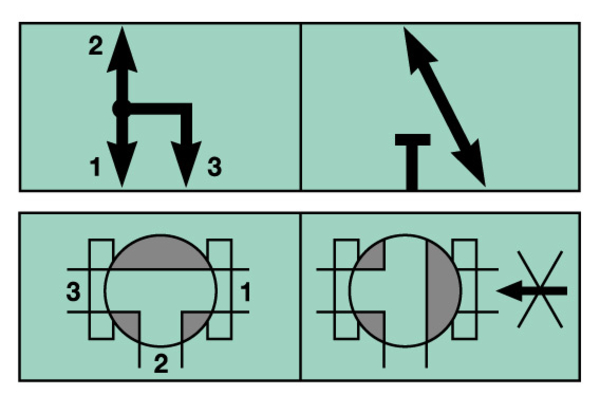

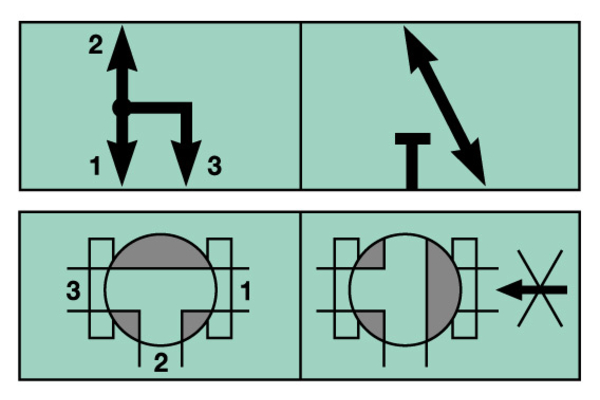

  Bore hole:	T
  GL [mm]:	11
  Material Casing:	steel
  Material switching ball:	Stahl, hartverchromt
  Material switching ball sealing:	POM
  Material switching shaft:	steel
  Material switching shaft sealing:	NBR
  Product title short:	Directional ball valve 3/2-ways
