| Thread [GA]: |
1/4" AG |
| Pressure load [bar]: |
Resting load: 3/4 x full scale value
Alternating load: 2/3 x full scale value
Short-time: 1 x full scale value |
| Nominal size: |
63 |
| Ø-casing front side [d1] [mm]: |
68 |
| Scaling: |
bar/psi |
| H [mm]: |
92 |
| t [mm]: |
29,5 |
| Ø-casing backside [d2] [mm]: |
62 |

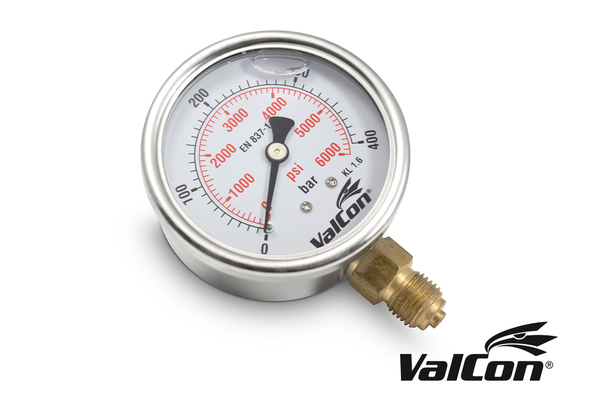

| Description: |
ValCon® Manometer |
| Filling liquid [ltr]: |
Glycerin 99,7% |
| Material Casing: |
stainless steel |
| Material connection: |
Brass |
| Material dial: |
Aluminum white, scale bar in black, psi in red, with stop pin |
| Material glass: |
Plastic, polycarbonate |
| Material movement: |
Copper alloy |
| Material pointer: |
Aluminum, black |
| Process connection: |
lower |
| Product title long: |
Pressure gauges and accessories |
| Temperature range [°C]: |
-20°C bis +60°C |
| Temperature range ambient [°C]: |
-20°C to +80°C |
| accuracy class: |
1,6 |
| display area [bar]: |
0 – 10 |
| material measuring element: |
Copper alloy, circularity |
| protection class: |
IP65 according to EN60529 / IEC 529 |
