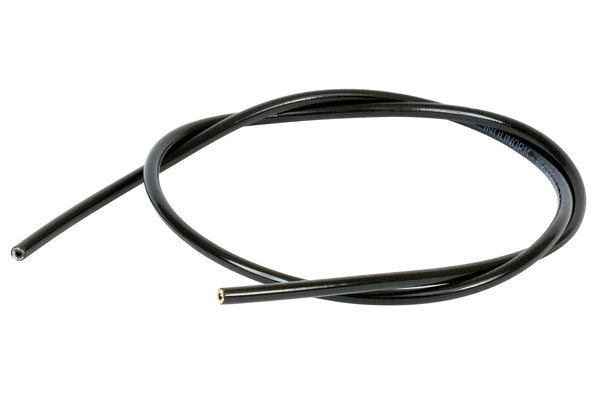

Measuring hose MT-MS

Similar image
To accessories

Detail

Art. No.
MT-MS-DN2
%
SALE
MT-MS-DN4
%
SALE
DN
02
04
Size
01
03
Inch
5/64
5/32
Outer Ø [mm]
5,0
8,0
Inner Ø [mm]
2,0
4,0
bending radius [mm]
20
40
Working pressure [bar]
630
630
burst pressure [bar]
1900
1900
Safety factor
3:1
3:1
Standard ferrule
MT-PF2-DN2
MT-PF2-DN4
Weight [kg]
0,013
0,017
Vacuum [bar]
0,93bar; 700 mm Hg - 13,5 psi; 27,5 Inch Hg
0,93bar; 700 mm Hg - 13,5 psi; 27,5 Inch Hg
Quantity


Product info

  • Technical data
    Color cover: black
    Color inner tube: white
    Cover: Polyurethane, pin pricked
    Inner tube: Polyester-elastomer
    MSHA-Approval: no
    Media: hydraulic oil H, HL und HLP according to DIN 51 524, grease
    Reinforcement: A network of aramid fiber (kevlar-fiber)
    application: Measuring hose
    number of layers: 1

Benefit

Lightweight construction using aramid fiber. Less bending radius and high kink resistance. Easy, individual production of pipes for assembling.

Accessories

- Fittings for measuring hoses plug-in coupling ST-DF
- Hosecutter: SC4-30
- Dies for assembling: P21-6.8-MS, P32-6.8-MS
