HAI20LORF45S20

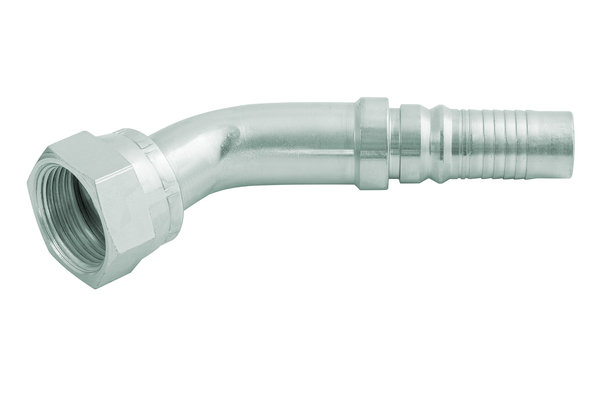

ORFS with swivel nut 45°

Product info

• Technical data

  DN:	31
  Thread + standard:	UN/UNF female thread, flat face
  Connection thread A:	1.11/16"-12

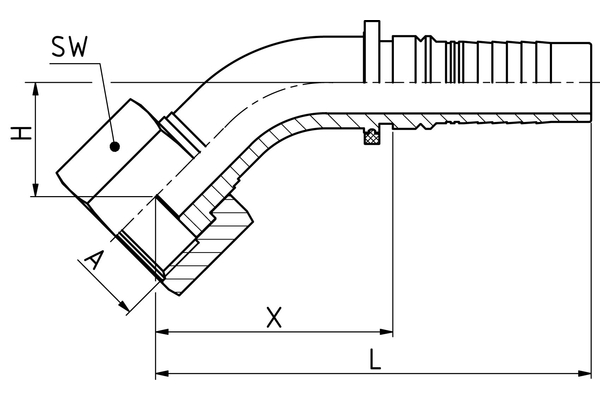

  X [mm]:	100,7
  H [mm]:	33,0
  SW1 [mm]:	50
  Connection name Indunorm:	LORF 45°
  Connection type:	ORFS with swivel nut 45°
  Construction form:	45°
  Material:	Free cutting steel
  Type of fittings:	Multispiral series HAI
