DKOR (HI)

Similar image
Similar image

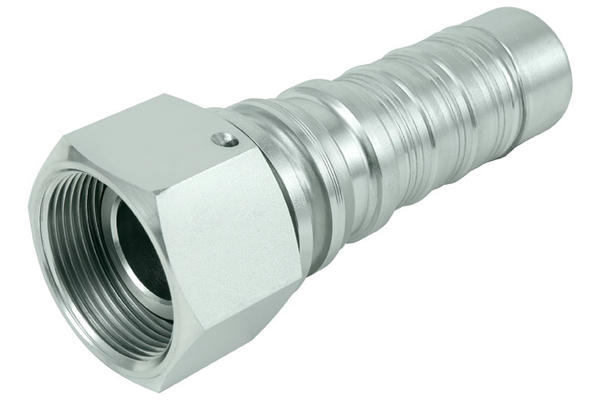

BSP sealing head, 60 ° cone with o-ring and union nut, BSP thread

To accessories

Detail

Art. No.
HI24BOF24
%
SALE
HI32BOF32
%
SALE
DN
38
51
Size
24
32
Inch
1.1/2
2
Thread + standard
BSP sealing head, 60 ° cone with O-ring and union nut, BSP thread
BSP sealing head, 60 ° cone with O-ring and union nut, BSP thread

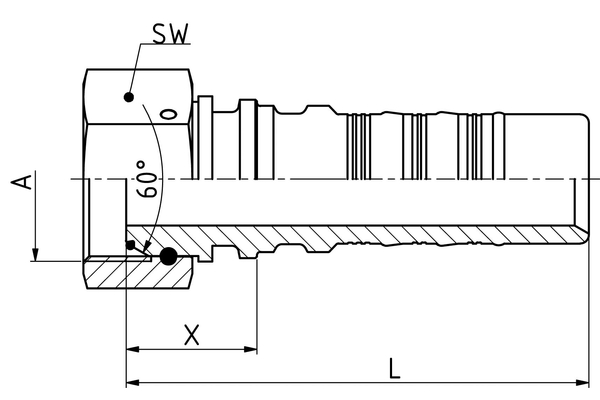

Connection thread A
G 1.1/2"
G 2"
X [mm]
41,2
43,8
L1 [mm]
137,5
154,9
Outer diameter O-ring [mm]
35,1
47,37
Height O-ring [mm]
1,6
1,78
SW1 [mm]
55
70
Quantity


Standard nominal sizes in bold

Product info

  • Specifications
    Connection name Indunorm: BOF
    Connection type: DKOR
    Material: steel
    Material O-Ring: NBR
    Surface: zinc plated, chrom 6-free
    Type of fittings: Multi spiral series HI
