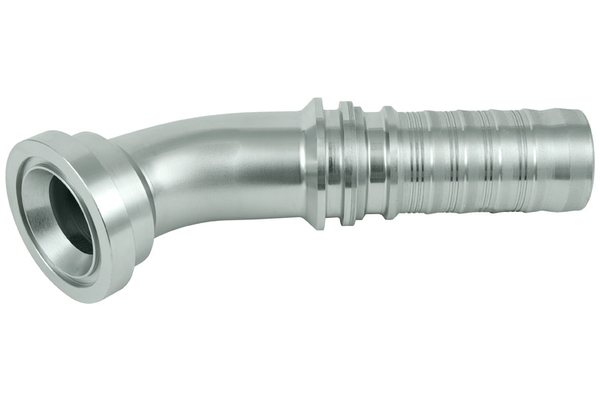

SFS 6000 PSI 45° (HI)

Similar image
Similar image

Flange head SAE J518 (ISO 6162) high pressure series 6.000 PSI

To accessories

Detail

Art. No.
HI-S24SFH6-45S24
%
SALE
HI-S32SFH6-45S32
%
SALE
DN
38
51
Size
24
32
Inch
1.1/2
2
Thread + standard
Flange head SAE J518 (ISO 6162) high pressure series 6000 PSI
Flange head SAE J518 (ISO 6162) high pressure series 6000 PSI

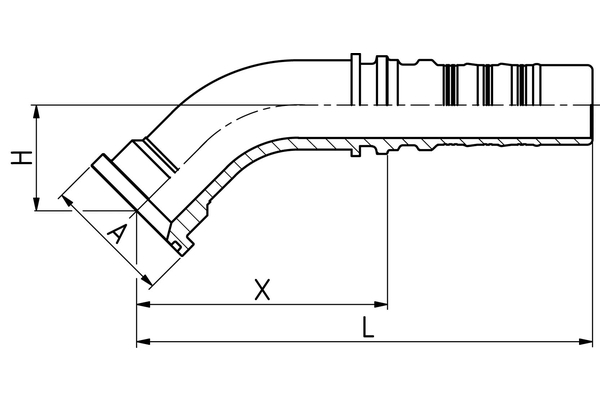

Flange size D2
1.1/2"
2"
X [mm]
113,0
136,9
L1 [mm]
209,4
248,0
H [mm]
40,3
50,0
Quantity


Standard nominal sizes in bold

Product info

  • Specifications
    Connection name Indunorm: SFH 6 - 45°
    Connection type: SFS 6000 PSI 45°
    Material: steel
    Surface: zinc plated, chrom 6-free
    Type of fittings: Multi spiral series HI
