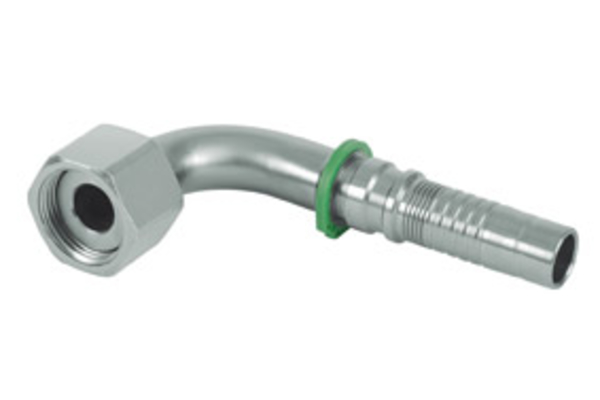

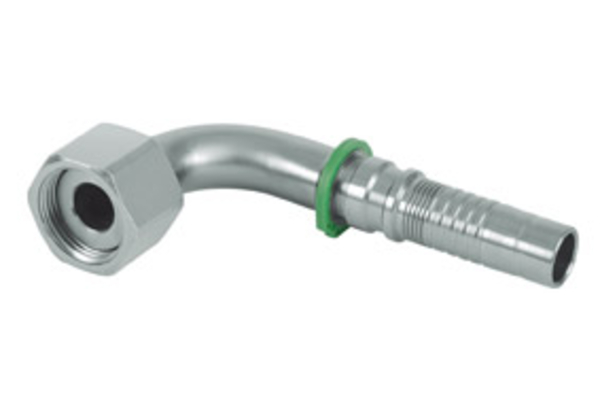

ORFS 90° with swivel nut (HV)

Similar image
Similar image

High pressure hose fittings

To accessories

Detail

Art. No.
HV-S12LORF90S12
%
SALE
HV-S16LORF90S16
%
SALE
HV-S20LORF90S20
%
SALE
DN
19
25
31
Size
12
16
20
Inch
3/4
1
1.1/4
Thread + standard
UN/UNF female thread, flat face
UN/UNF female thread, flat face
UN/UNF female thread, flat face
Connection thread A
1.3/16"-12 UN
1.7/16"-12 UN
1.11/16"-12 UN

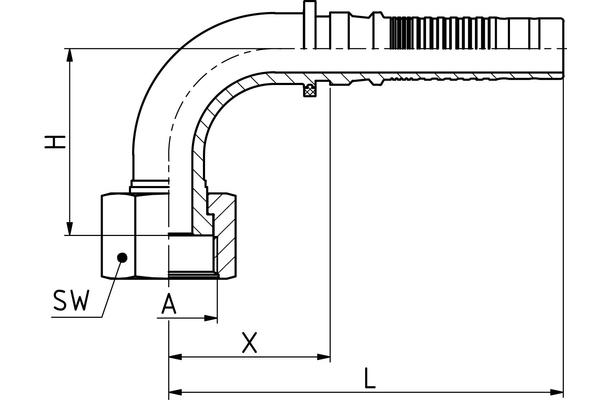

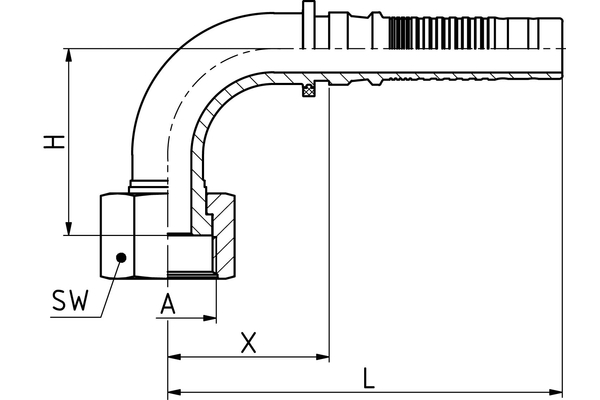

X [mm]
102,5
130,5
157,0
L1 [mm]
128,0
149,0
170,5
H [mm]
60,0
78,0
95,5
SW1 [mm]
36
41
50
Type of nut
Union nut
Union nut
Union nut
Quantity


Standard nominal sizes in bold

Product info

  • Specifications
    Connection name Indunorm: LORF 90°
    Connection type: ORFS 90° with swivel nut
    Construction form: 90°
    Material: Free cutting steel
    Resistance against red rust [h]: 144
    Resistance against white rust [h]: 72
    Surface: ZnNi
    Type of fittings: Multispiral series HV
