DKOS (PV)

Similar image
Similar image

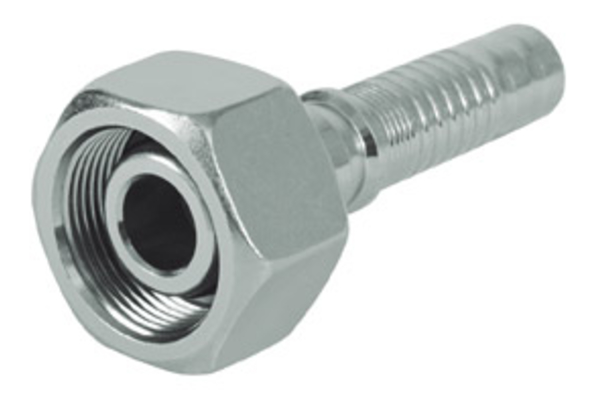

Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut, heavy series. Especially for harsh applications, in combination with HV-swage ferrules

To accessories

Detail

Art. No.
PV36MSOF25-12
%
SALE
PV42MSOF30-16
%
SALE
PV52MSOF38-20
%
SALE
DN
19
25
31
Size
12
16
20
Inch
3/4
1
1.1/4
Thread + standard
Especially for harsh applications, in combination with HV-swage ferrules
Especially for harsh applications, in combination with HV-swage ferrules
Especially for harsh applications, in combination with HV-swage ferrules
Connection thread A
M36x2
M42x2
M52x2

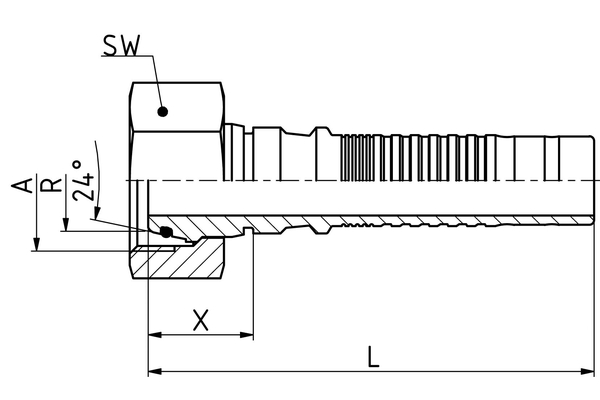

X [mm]
31,5
31,5
36,0
L1 [mm]
104,0
111,0
114,0
Outer diameter O-ring [mm]
22
27
33
Height O-ring [mm]
2,5
2,5
2,5
SW1 [mm]
46
50
60
Type of nut
Union nut
Union nut
Union nut
Quantity


Standard nominal sizes in bold

Product info

  • Specifications
    Connection name Indunorm: MSOF
    Connection type: DKOS
    Material: Free cutting steel
    Resistance against red rust [h]: 720
    Resistance against white rust [h]: 120
    Surface: ZnNi
    Type of fittings: Heavy duty series PV

Benefit

High-strength steel with high wall thickness for heavy-duty applications.
