DKR (R)

Similar image
Similar image

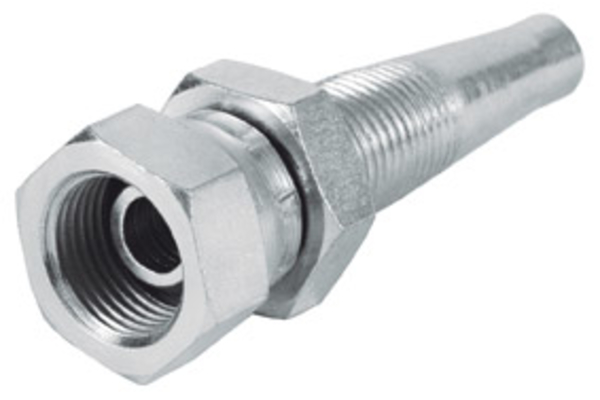

BSP sealing head, 60 ° cone with union nut, BSP thread

To accessories

Detail

Art. No.
R04BF04
%
SALE
R06BF05
%
SALE
R06BF06
%
SALE
R08BF06
%
SALE
R08BF08
%
SALE
R12BF12
%
SALE
R16BF16
%
SALE
DN
06
08
10
10
12
19
25
Size
04
05
06
06
08
12
16
Inch
1/4
5/16
3/8
3/8
1/2
3/4
1
Thread + standard
BSP sealing head, 60 ° cone with O-ring and union nut, BSP thread
BSP sealing head, 60 ° cone with O-ring and union nut, BSP thread
BSP sealing head, 60 ° cone with O-ring and union nut, BSP thread
BSP sealing head, 60 ° cone with O-ring and union nut, BSP thread
BSP sealing head, 60 ° cone with O-ring and union nut, BSP thread
BSP sealing head, 60 ° cone with O-ring and union nut, BSP thread
BSP sealing head, 60 ° cone with O-ring and union nut, BSP thread

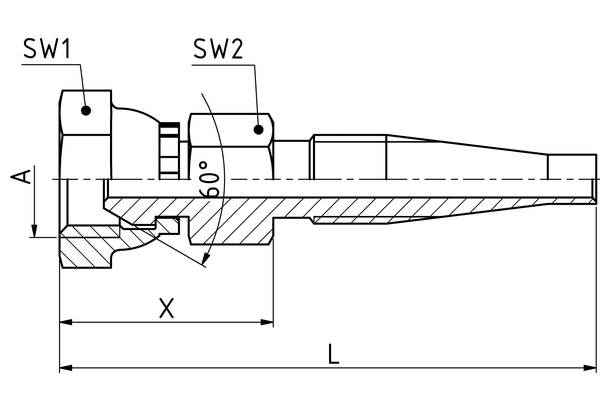

Connection thread A
G 1/4"-19
G 3/8"-19
G 3/8"-19
G 1/2"-14
G 1/2"-14
G 3/4"-14
G 1"-11
X [mm]
17,7
23,6
22,4
20,0
22,3
25,7
33,5
L1 [mm]
57,2
68,1
68,1
65,5
70,0
68,0
105,0
SW1 [mm]
19
22
22
27
27
32
41
SW2 [mm]
14
17
17
19
22
27
36
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: BF
    Connection type: DKR
    Material: Free cutting steel
    Resistance against red rust [h]: 144
    Resistance against white rust [h]: 72
    Surface: zinc plated, chrom 6-free
    Type of fittings: Reusable series R
