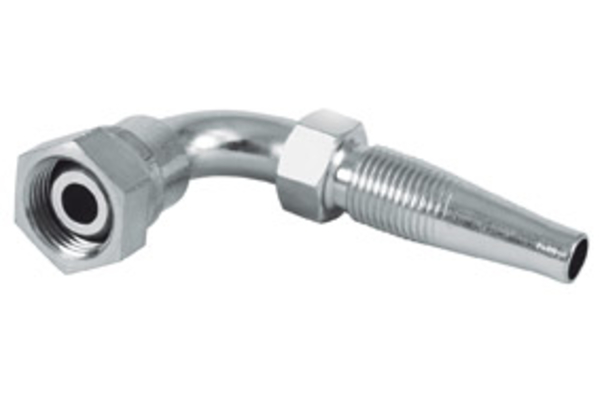

DKL 90° (R)

Similar image
Similar image

Sealing cone with union nut light series

To accessories

Detail

Art. No.
R14MSF08-90S04
%
SALE
R18MSF12-90S06
%
SALE
DN
06
10
Size
04
06
Inch
1/4
3/8
Thread + standard
Sealing cone with union nut light series
Sealing cone with union nut light series

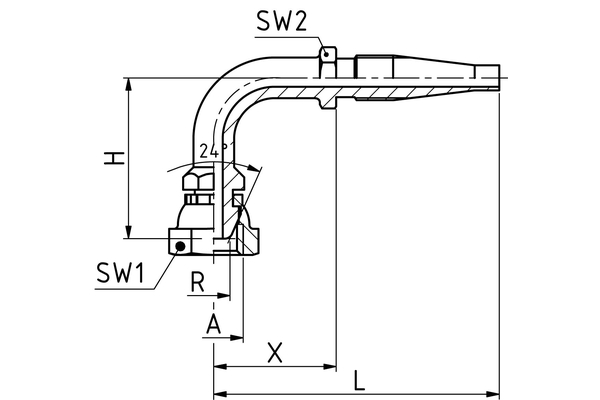

Pipe Ø R [mm]
8
12
X [mm]
39,7
34,5
L1 [mm]
79,4
80,2
H [mm]
39,5
53,2
SW1 [mm]
17
22
SW2 [mm]
17
17
Type of nut
CR
CR
Quantity


Standard nominal sizes in bold

Product info

  • Specifications
    Connection name Indunorm: MSF
    Connection type: DKL 90°
    Material: Free cutting steel
    Resistance against red rust [h]: 144
    Resistance against white rust [h]: 72
    Surface: zinc plated, chrom 6-free
    Type of fittings: Reusable series R
