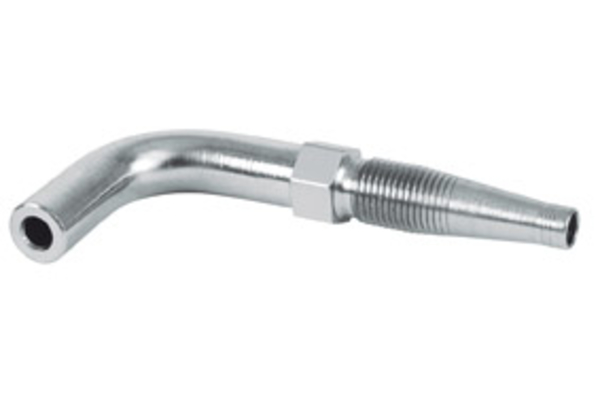

BEL/RSL - Pipe socket 90° (R)

Pipe socket according to DIN 2353 for cutting ring and union nut, light series

Art. No.

R06MOSE90S04

Size

Inch

1/4

3/8

Thread + standard

Pipe socket according to DIN 2353 for cutting ring and union nut, light series

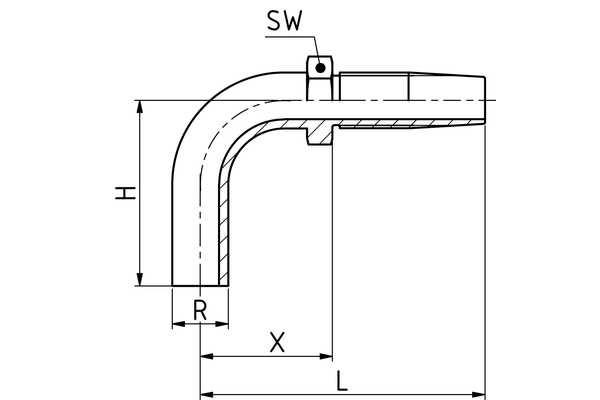

Pipe Ø R [mm]

X [mm]

25,5

45,0

L1 [mm]

64,5

90,0

H [mm]

46,0

51,0

SW1 [mm]

Quantity

Standard nominal sizes in bold

Connection name Indunorm:	MOSE 90°
Connection type:	BEL 90° RSL
Material:	Free cutting steel
Resistance against red rust [h]:	144
Resistance against white rust [h]:	72
Surface:	zinc plated, chrom 6-free
Type of fittings:	Reusable series R

The cutting ring final assembly should take place in the hardened pre-assembly socket RV..VM-L/S.
