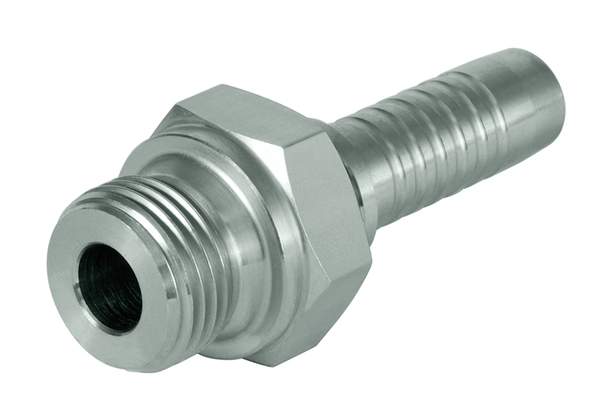

XV16FFM16
AGR flat sealing FFM

Product info

• Technical data

  DN:	25
  Size:	16
  Inch:	1
  Thread + standard:	BSP threaded adapter with male thread, flat sealing

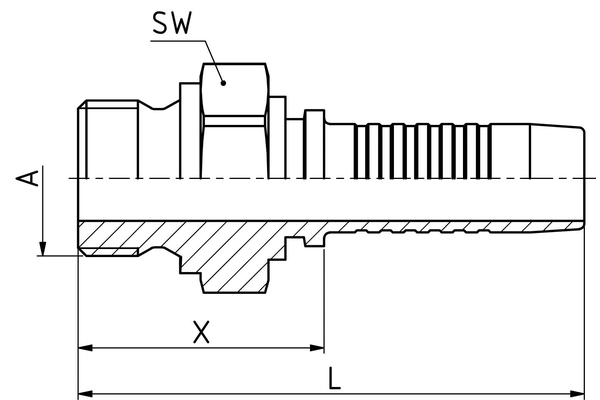

  Connection thread A:	G 1"
  X [mm]:	37,8
  L1 [mm]:	99,8
  SW1 [mm]:	41
  Connection name Indunorm:	FFM FLATFACE
  Connection type:	AGR FLATFACE
  Construction form:	0°
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
