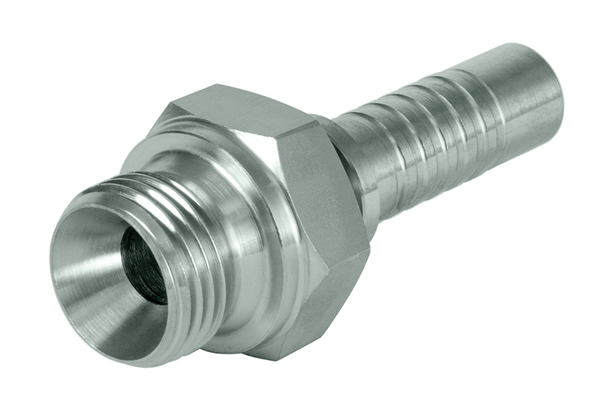

XV06BM05
AGR BM

Product info

• Technical data

  DN:	08
  Size:	05
  Inch:	5/16

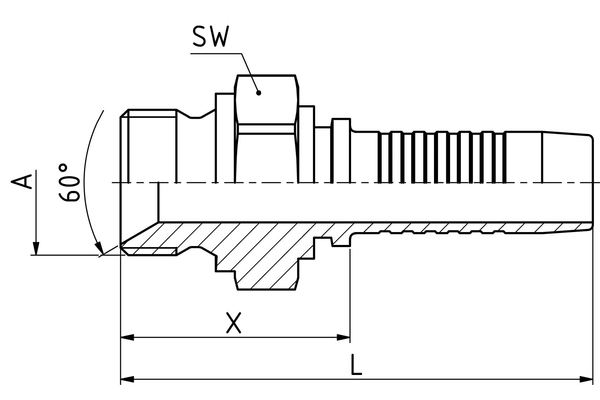

  Thread + standard:	BSP-threaded adapter, 60°-cone with BSP male thread
  Connection thread A:	G 3/8"
  X [mm]:	26,6
  L1 [mm]:	53,1
  SW1 [mm]:	22
  Connection name Indunorm:	BM
  Connection type:	AGR
  Construction form:	0°
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
