Product info
-
Specifications

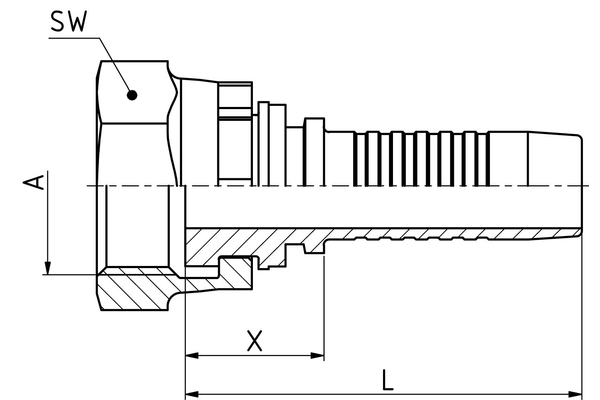

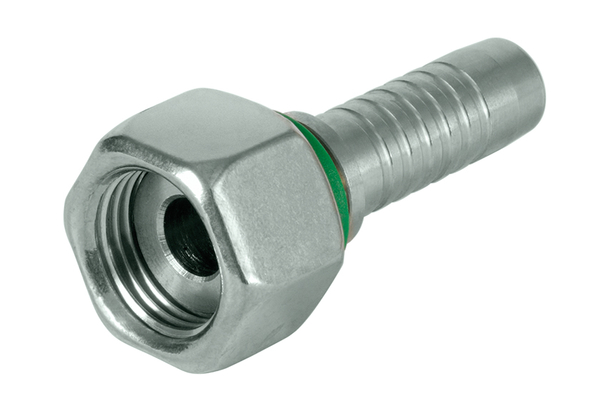

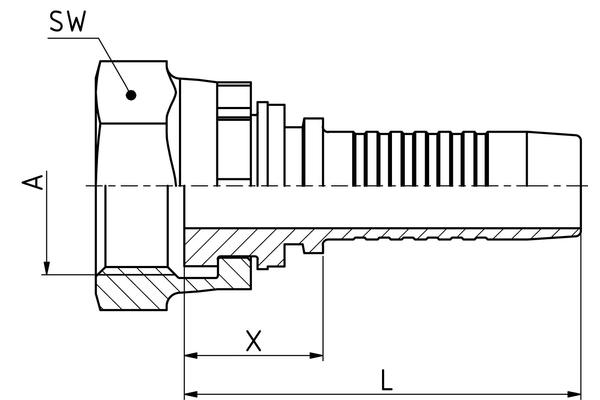

DN: 25 Size: 16 Inch: 1 Thread + standard: BSP union nut, flat sealing Connection thread A: G 1" X [mm]: 23,6 L1 [mm]: 78,8 SW1 [mm]: 41 Type of nut: CR Connection name Indunorm: FF Connection type: DKR-FF Construction form: 0° Material: Free cutting steel Resistance against red rust [h]: 144 Resistance against white rust [h]: 72 Surface: galvanised and Cr III passivated Type of fittings: Universal series XV
