Product info
-
Specifications

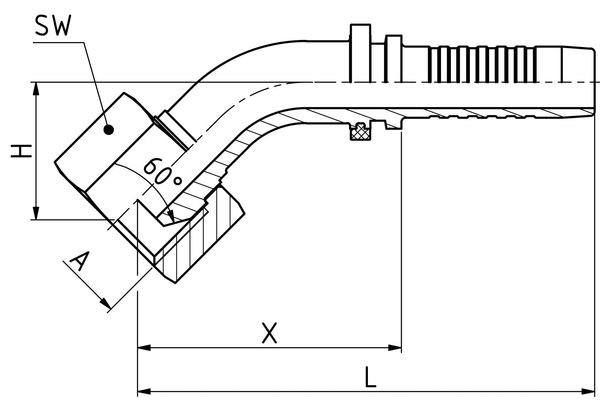

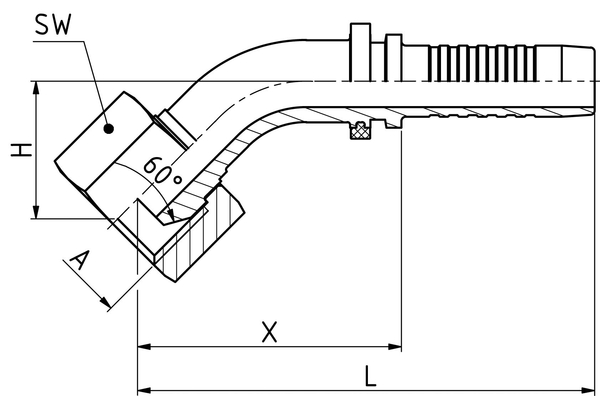

DN: 25 Size: 16 Inch: 1 Thread + standard: BSP sealing head, 60 ° cone with union nut, BSP thread Connection thread A: G 1" X [mm]: 111,0 L1 [mm]: 165,3 H [mm]: 31,0 SW1 [mm]: 38,0 Type of nut: CR Connection name Indunorm: BF 45° Connection type: DKR 45° Construction form: 45° Material: Free cutting steel Resistance against red rust [h]: 144 Resistance against white rust [h]: 72 Surface: galvanised and Cr III passivated Type of fittings: Universal series XV
