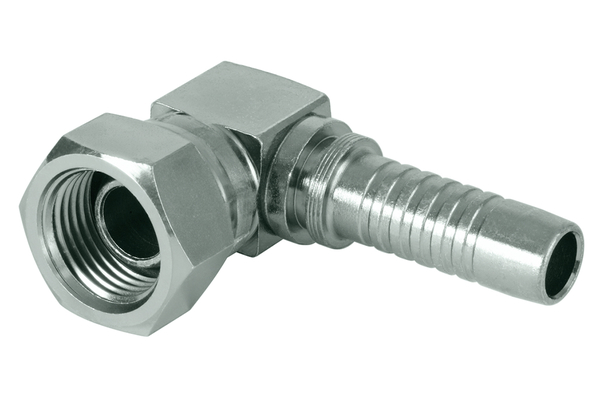

DKR 90° compact

Similar image
Similar image

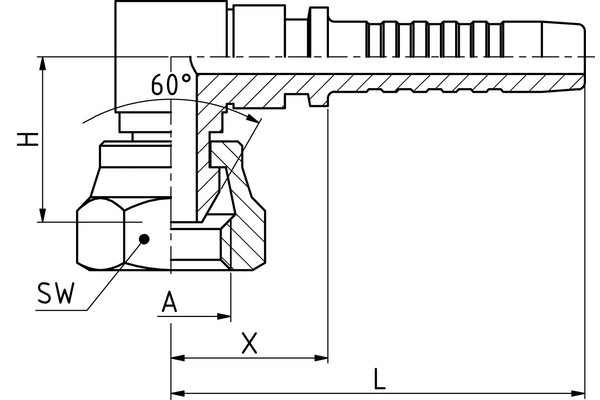

BSP sealing head, 60 ° cone with union nut, BSP thread

To accessories

Detail

Art. No.
XV04B90K04
%
SALE
XV06B90K06
%
SALE
XV08B90K08
%
SALE
XV12B90K12
%
SALE
DN
06
10
12
20
Size
04
06
08
12
Inch
1/4
3/8
1/2
3/4
Thread + standard
BSP sealing head, 60 ° cone with union nut, BSP thread
BSP sealing head, 60 ° cone with union nut, BSP thread
BSP sealing head, 60 ° cone with union nut, BSP thread
BSP sealing head, 60 ° cone with union nut, BSP thread
Connection thread A
G 1/4"
G 3/8"
G 1/2"
G 3/4"
X [mm]
21,0
22,0
24,0
32,0
L1 [mm]
47,5
52,5
56,5
76,3
H [mm]
23,0
24,0
27,0
35,0
SW1 [mm]
19
22
27
32
Type of nut
CR
CR
CR
CR
Quantity


Standard nominal sizes in bold

Product info

  • Specifications
    Connection name Indunorm: BF 90°
    Connection type: DKR 90° compact
    Construction form: 90°
    Material: Free cutting steel
    Resistance against red rust [h]: 144
    Resistance against white rust [h]: 72
    Surface: galvanised and Cr III passivated
    Type of fittings: Universal series XV
