Product info
-
Technical data

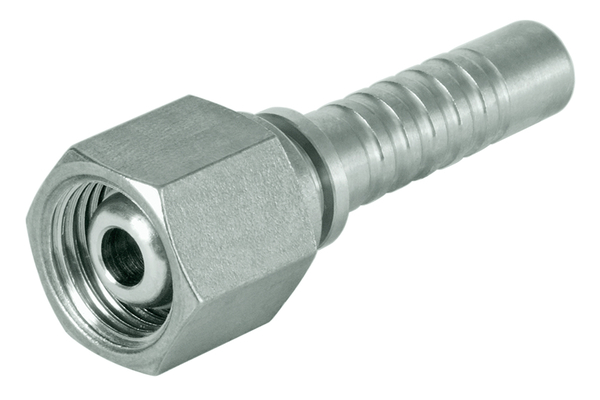

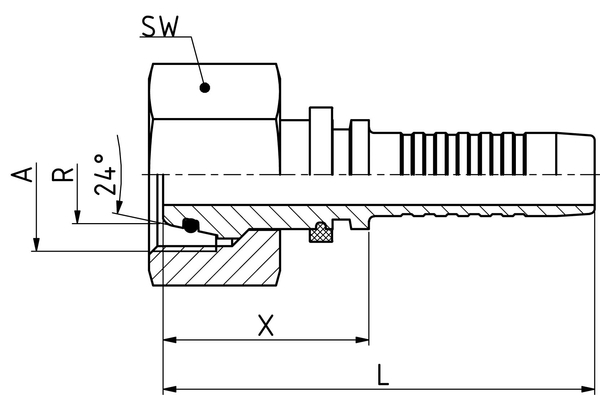

DN: 08 Size: 05 Inch: 5/16 Thread + standard: Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series Connection thread A: M16x1,5 Pipe Ø R [mm]: 10 X [mm]: 24,6 L1 [mm]: 51,1 Outer diameter O-ring [mm]: 9 Height O-ring [mm]: 1,5 Height O-Ring [mm]: 1,5 SW1 [mm]: 19 Type of nut: - Connection name Indunorm: MSOF Connection type: DKOL Material: Free cutting steel Material O-Ring: NBR Resistance against red rust [h]: 350 Resistance against white rust [h]: 100 Surface: galvanised and Cr III passivated Type of fittings: Universal series XV
