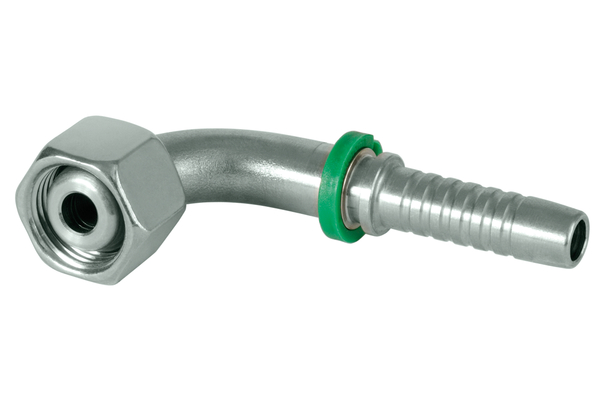

XV16MSF08-90S04
DKS 90° MSF 90°

Product info

• Technical data

  DN:	06
  Size:	04
  Inch:	1/4
  Thread + standard:	Sealing cone with union nut heavy series
  Connection thread A:	M16x1,5

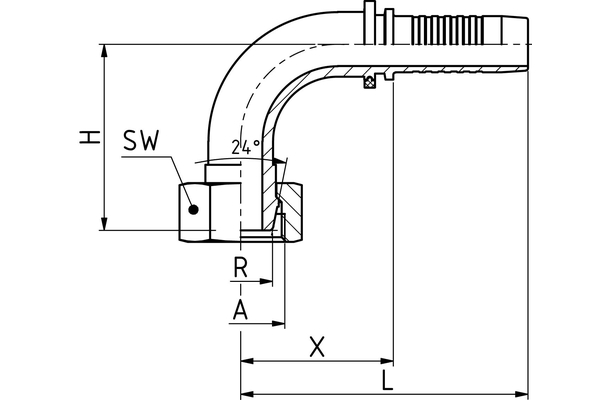

  Pipe Ø R [mm]:	8
  X [mm]:	32,8
  L1 [mm]:	63,0
  H [mm]:	37,7
  SW1 [mm]:	19
  Connection name Indunorm:	MSF 90°
  Connection type:	DKS 90°
  Construction form:	90°
  Material:	Free cutting steel
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
  degree:	90
