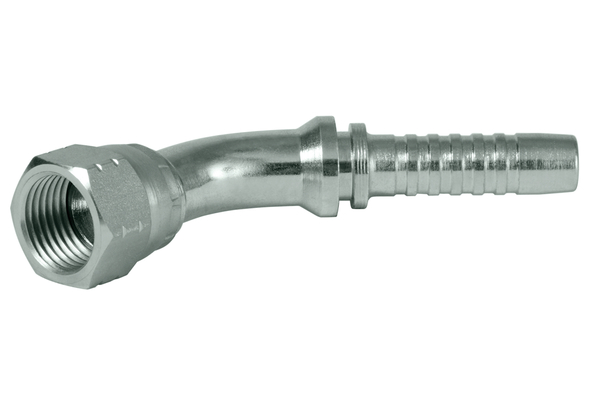

XV14MJF45S06
Komatsu 45° with metric union nut

Product info

• Technical data

  DN:	10
  Size:	06
  Inch:	3/8
  Thread + standard:	Komatsu-sealing head, 60 ° cone with union nut, metric thread

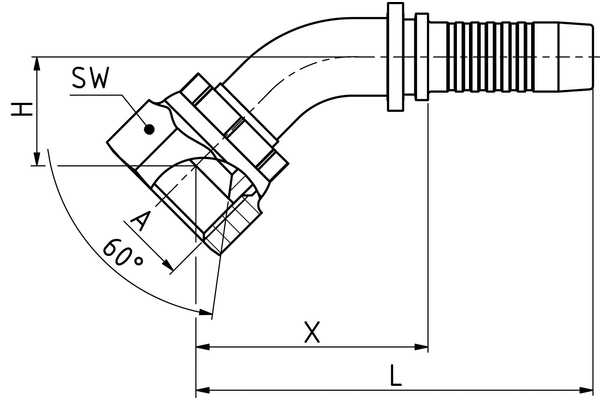

  Connection thread A:	M14x1,5
  X [mm]:	46,2
  L1 [mm]:	79,7
  H [mm]:	20,5
  SW1 [mm]:	19
  Connection name Indunorm:	MJF 45°
  Connection type:	Komatsu 45° with BSP-male thread
  Construction form:	45°
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
