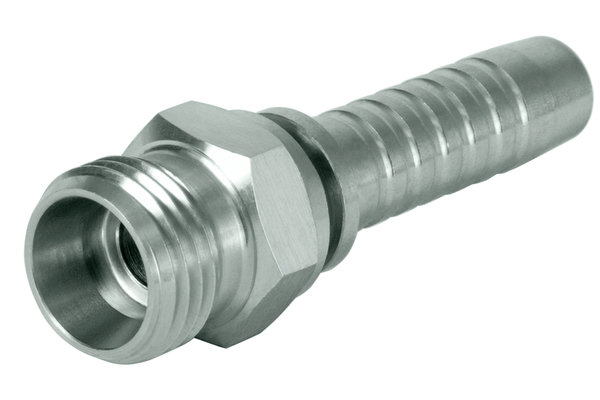

XV18ME10-04
CES ME

Product info

• Technical data

  DN:	06
  Size:	04
  Inch:	1/4

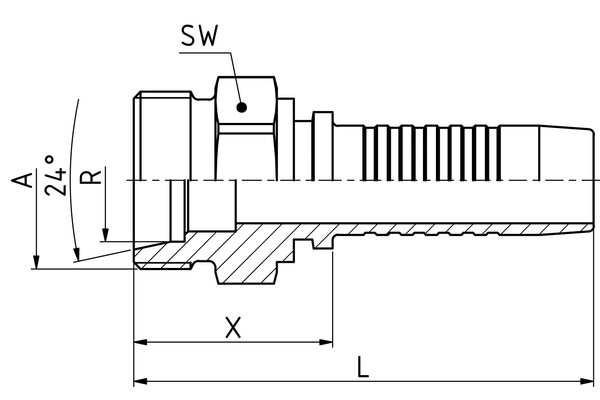

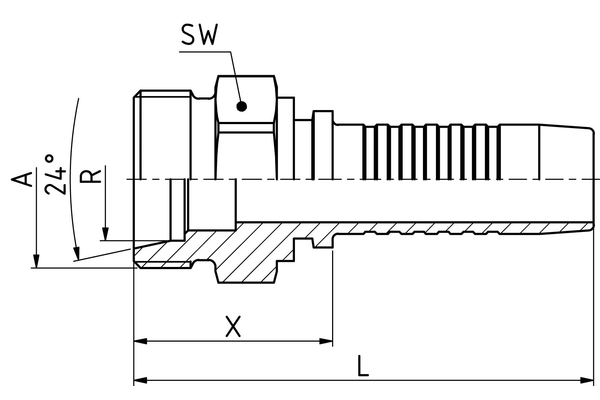

  Thread + standard:	Threaded stem with bore form W (24 °) according to DIN 3861, heavy series
  Connection thread A:	M18x1,5
  Pipe Ø R [mm]:	10
  X [mm]:	26,5
  L1 [mm]:	56,5
  SW1 [mm]:	19
  Connection name Indunorm:	ME
  Connection type:	CES
  Construction form:	0°
  Material:	Free cutting steel
  Resistance against red rust [h]:	720
  Resistance against white rust [h]:	120
  Surface:	Zinc-Nickel
  Type of fittings:	Universal series XV
