Product info
-
Technical data

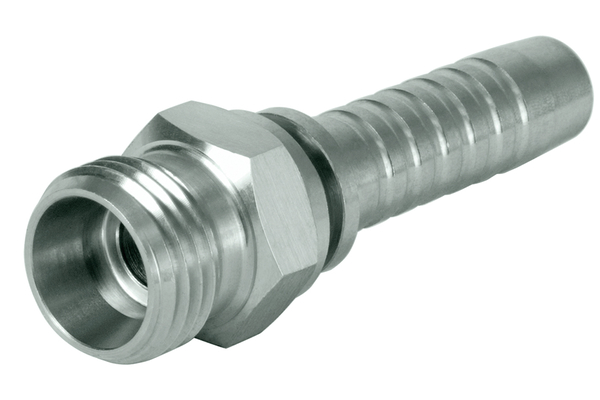

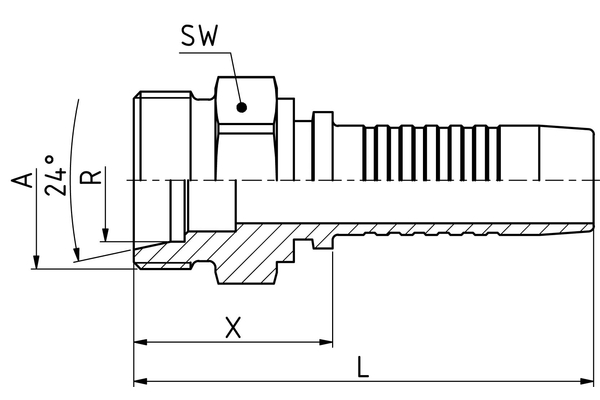

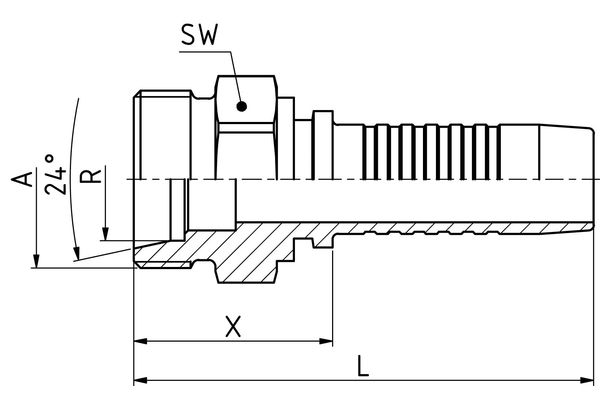

DN: 08 Size: 05 Inch: 5/16 Thread + standard: Threaded stem with bore form W (24 °) according to DIN 3861, heavy series Connection thread A: M18x1,5 Pipe Ø R [mm]: 10 X [mm]: 25,8 L1 [mm]: 56,0 SW1 [mm]: 19 Connection name Indunorm: ME Connection type: CES Construction form: 0° Material: Free cutting steel Surface: galvanised and Cr III passivated Type of fittings: Universal series XV
