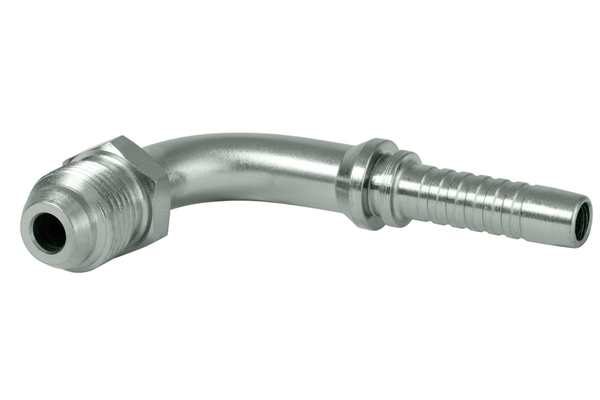

XV20MJM90S08
Komatsu 90° with metric male thread

Product info

• Technical data

  DN:	12
  Size:	08
  Inch:	1/2
  Thread + standard:	Komatsu-threaded adapter, 60 ° sealing cone with metric male thread
  Connection thread A:	M20x1,5

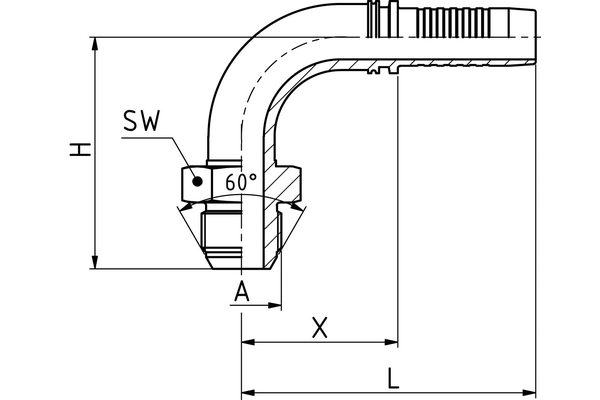

  X [mm]:	37,0
  L1 [mm]:	74,0
  H [mm]:	55,7
  SW1 [mm]:	22
  Connection name Indunorm:	MJM 90°
  Connection type:	Komatsu 90° with metric male thread
  Construction form:	90°
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	Cr3
  Type of fittings:	Universal series XV
