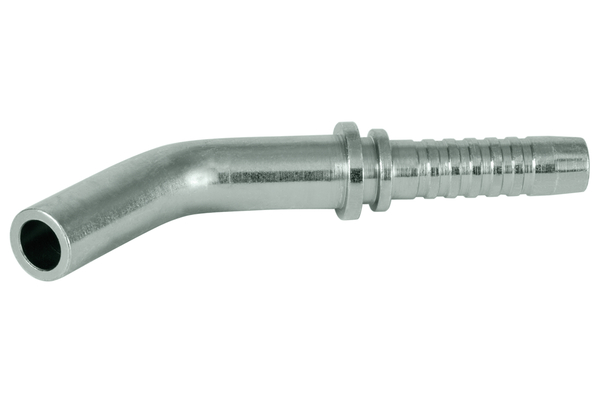

BEL/RSL - Pipe socket 45°

Pipe socket according to DIN 2353 for cutting ring and union nut, light series

To accessories

Detail

Art. No.

XV06MOSE45S04

XV08MOSE45S04

Size

Inch

1/4

Thread + standard

Pipe socket according to DIN 2353 for cutting ring and union nut, light series

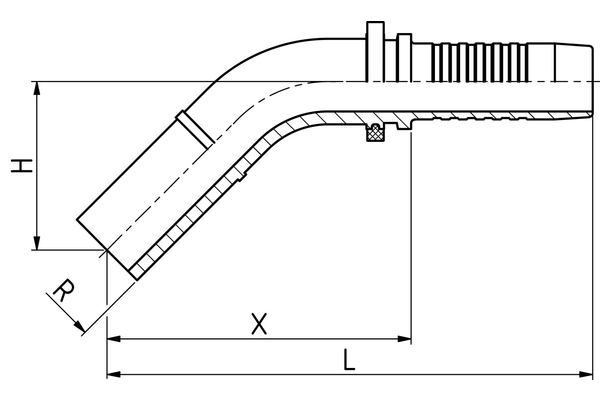

Pipe Ø R [mm]

X [mm]

49,0

43,5

L1 [mm]

79,0

73,5

H [mm]

19,0

Quantity

Standard nominal sizes in bold

Product info

Technical data

Connection name Indunorm:	MOSE 45°
Connection type:	BEL 45° RSL
Construction form:	45°
Material:	Free cutting steel
Surface:	galvanised and Cr III passivated
Type of fittings:	Universal series XV

Practical tip

The pre-assembly of the cutting ring should be carried out using the hardened pre-assembly socket RV..VM L / S. For assembling cutting rings properly, please refer to our installation instructions.
