Product info
-
Specifications

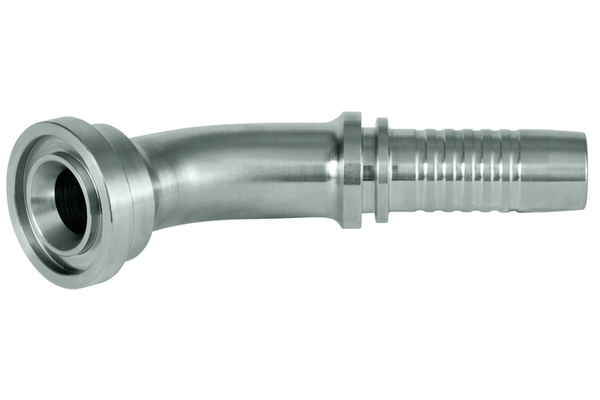

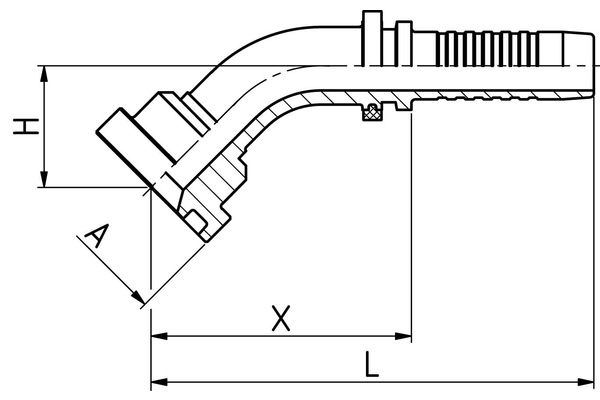

DN: 31 Size: 20 Inch: 1.1/4 Thread + standard: Flange head SAE J518 (ISO 6162-1) standard series 3000 PSI Flange size D2: 1" X [mm]: 81,5 L1 [mm]: 141,5 H [mm]: 30,5 D2 [mm]: 4,5 Connection name Indunorm: SFH 45° Connection type: SFL 3000 PSI 45° Construction form: 45° Material: Free cutting steel Resistance against red rust [h]: 720 Resistance against white rust [h]: 120 Surface: Zinc-Nickel Type of fittings: Universal series XV
