Product info
-
Specifications

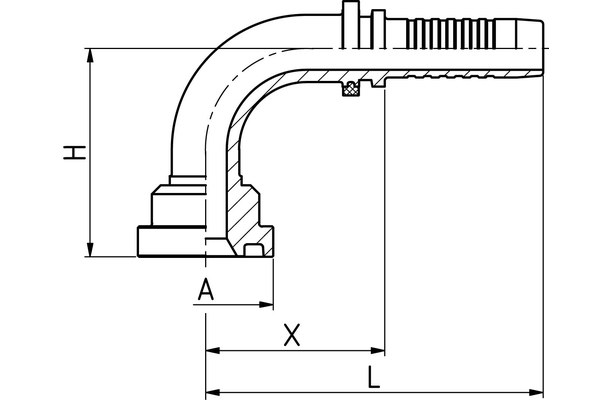

DN: 19 Size: 12 Inch: 3/4 working pressure [bar]: 206 Thread + standard: Flange head SAE J518 (ISO 6162-1) standard series 3000 PSI Flange size D2: 1/2" X [mm]: 52,8 L1 [mm]: 98,8 H [mm]: 57,5 D2 [mm]: 30,2 Connection name Indunorm: SFH 90° Connection type: SFL 3000 PSI 90° Construction form: 90° Material: Free cutting steel Resistance against red rust [h]: 144 Resistance against white rust [h]: 72 Surface: galvanised and Cr III passivated Type of fittings: Universal series XV
