Product info
-
Specifications

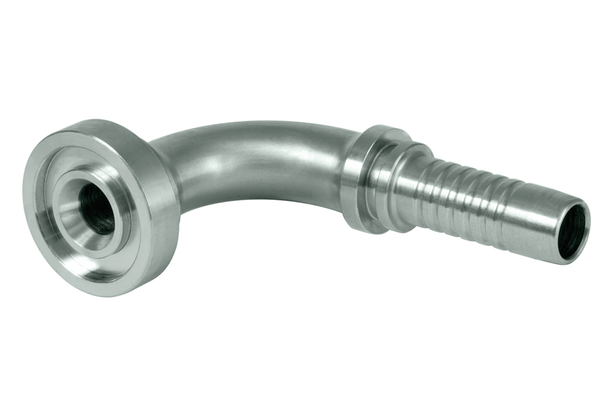

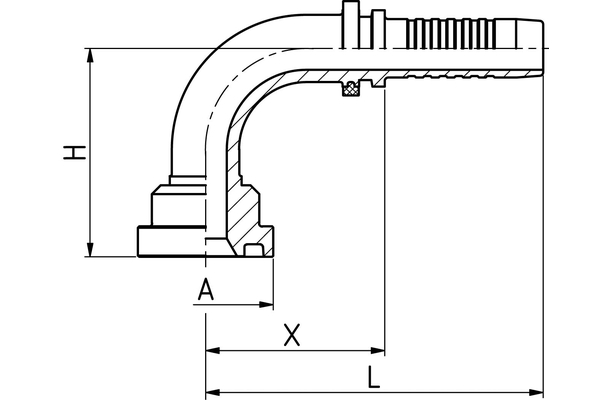

DN: 19 Size: 12 Inch: 3/4 working pressure [bar]: 206 Thread + standard: Flange head SAE J518 (ISO 6162-1) standard series 3000 PSI Flange size D2: 3/4" X [mm]: 53,7 L1 [mm]: 99,5 H [mm]: 55,5 D2 [mm]: 38,1 Connection name Indunorm: SFH 90° Connection type: SFL 3000 PSI 90° Construction form: 90° Material: Free cutting steel Resistance against red rust [h]: 720 Resistance against white rust [h]: 120 Surface: Zinc-Nickel Type of fittings: Universal series XV
