Product info
-
Specifications

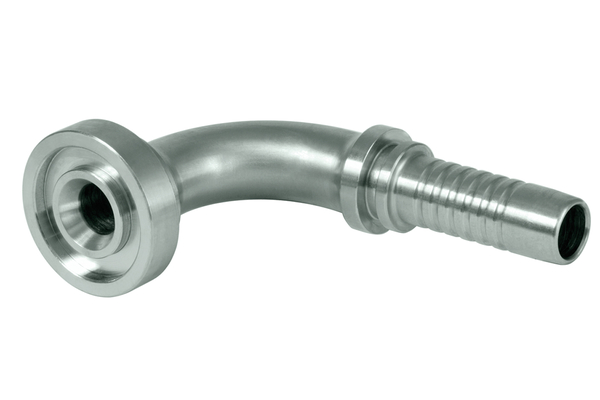

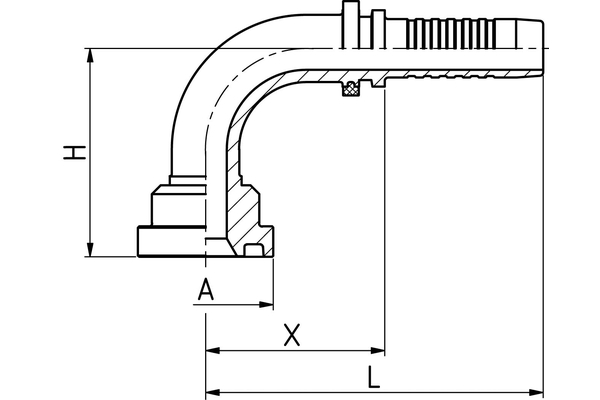

DN: 25 Size: 16 Inch: 1 working pressure [bar]: 206 Thread + standard: Flange head SAE J518 (ISO 6162-1) standard series 3000 PSI Flange size D2: 1.1/4" X [mm]: 99,0 L1 [mm]: 154,0 H [mm]: 79,0 D2 [mm]: 50,8 Connection name Indunorm: SFH 90° Connection type: SFL 3000 PSI 90° Construction form: 90° Material: Free cutting steel Resistance against red rust [h]: 720 Resistance against white rust [h]: 120 Surface: ZnNi Type of fittings: Universal series XV
