Product info
-
Specifications

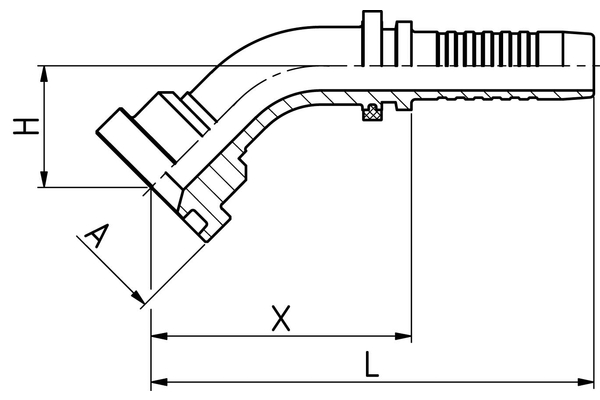

DN: 25 Size: 16 Inch: 1 working pressure [bar]: 413 Thread + standard: Flange head SAE J518 (IS 6162-1) high pressure series, 6000 PSI Flange size D2: 3/4" X [mm]: 74,6 L1 [mm]: 130,0 H [mm]: 30,0 D2 [mm]: 41,3 Connection name Indunorm: SFH 6 - 45° Connection type: SFS 6000 PSI 45° Construction form: 45° Material: Free cutting steel Resistance against red rust [h]: 144 Resistance against white rust [h]: 72 Surface: galvanised and Cr III passivated Type of fittings: Universal series XV
