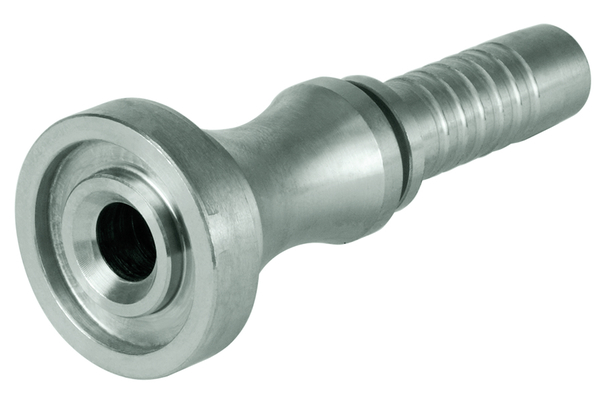

XV16SFH9-12
SFS CAT SFH 9

Product info

• Technical data

  DN:	19
  Size:	12
  Inch:	3/4
  working pressure [bar]:	413
  Thread + standard:	Flange head (CAT) high pressure series
  Flange size D2:	1"
  D2 [mm]:	44,5
  Connection name Indunorm:	SFH 9
  Connection type:	SFS CAT
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
