Product info
-
Specifications

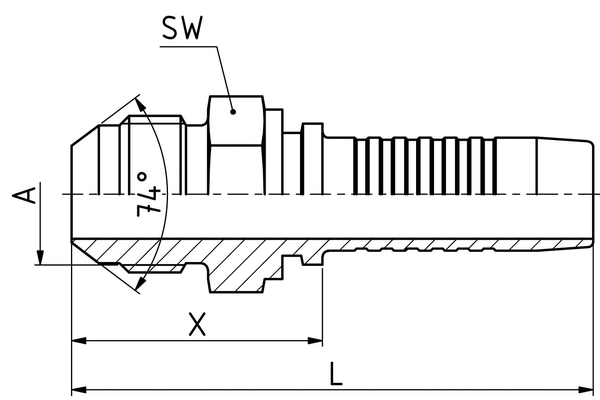

DN: 12 Size: 08 Inch: 1/2 Thread + standard: JIC threaded adapter, 74 ° cone with UN / UNF thread Connection thread A: 3/4"-16 UNF X [mm]: 31,2 L1 [mm]: 63,7 SW1 [mm]: 19 Connection name Indunorm: JM Connection type: AGJ Construction form: 0° Material: Free cutting steel Resistance against red rust [h]: 144 Resistance against white rust [h]: 72 Surface: galvanised and Cr III passivated Type of fittings: Universal series XV
