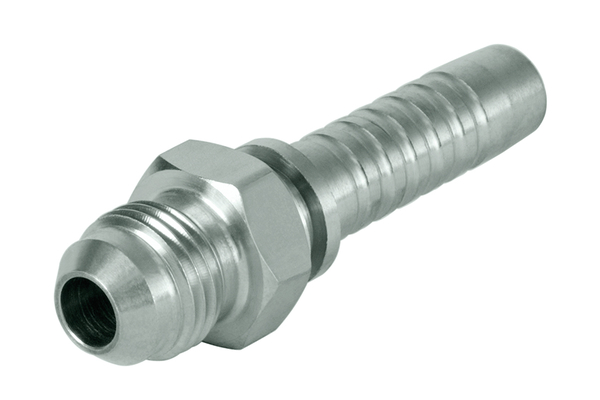

XV17JM08
AGJ JM

Product info

• Technical data

  DN:	12
  Size:	08
  Inch:	1/2
  Thread + standard:	JIC threaded adapter, 74 ° cone with UN / UNF thread
  Connection thread A:	1.1/16"-12 UN
  X [mm]:	39,7
  L1 [mm]:	72,2
  SW1 [mm]:	27
  Connection name Indunorm:	JM
  Connection type:	AGJ
  Construction form:	0°
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
