Specifications

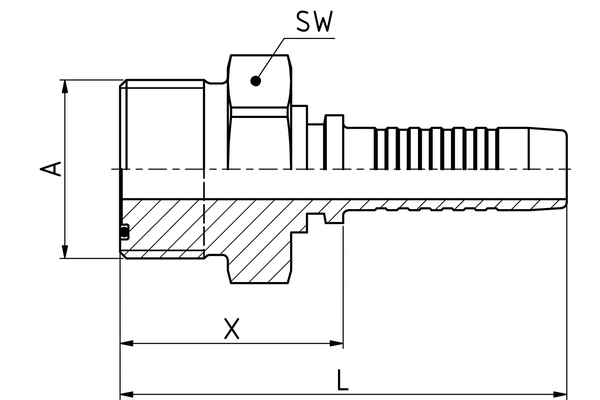

DN: 06 Size: 04 Inch: 1/4 Thread + standard: ORFS Sealing form, male thread with frontal O-ring, UN / UNF / UNS-Thread Connection thread A: 9/16"-18 UNF X [mm]: 24,6 L1 [mm]: 51,0 Outer diameter O-ring [mm]: 7,65 Height O-ring [mm]: 1,78 SW1 [mm]: 17 Connection name Indunorm: ORM Connection type: ORFS with male thread Construction form: 0° Material: Free cutting steel Material O-Ring: NBR Resistance against red rust [h]: 144 Resistance against white rust [h]: 72 Surface: galvanised and Cr III passivated Type of fittings: Universal series XV
